New FLASH-IPL Probe

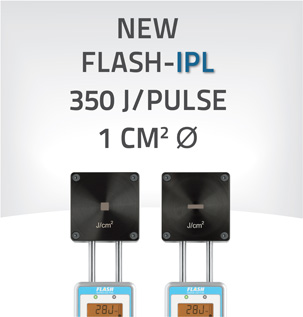

New FLASH-IPL Probe New FLASH-IPL Probes for IPL sources
New FLASH-IPL Probe August 25th, 2011

Gentec-EO has extended the FLASH Handheld Laser Probes family of products with the addition of the new FLASH-IPL Probes, specially designed for IPL sources. The FLASH-IPL is configured to measure intense light pulses at slow repetition rates up to 350 J/pulse with its unique single shot calibration. Thanks to the calibrated apertures of 1 cm2, the user will get a direct measurement of the FLUENCE (J/cm2). Also available upon request, a special model for large beams, with a 55 mm Ø optical aperture.

  • Direct Measurement of the FLUENCE
    • Measurement in J/cm2 with our calibrated 1 cm2 apertures
  • Choice Between 2 Apertures Formats
    • FLASH-500-10S-IPL: Square Aperture of 10 x 10 mm
    • FLASH-500-20R5-IPL: Rectangular Aperture of 5 x 20 mm
    • Also available upon request, a 55 mm aperture for the largest beams
  • High Energy Per Pulse
    • Accurate readings up to 350 J/pulse!
  • Easy Operation
    • Backlight with ON/OFF controls
    • Thermometer for head temperature
    • Red and Green LEDs for device status
    • Functions separated on 2 buttons
  • Available with Handle or Cable
    • Standard Model: Fixed Handle
    • In Option: -C Model with 5 feet soft cable and removable handle
  • Rugged
    • All-metal body
    • High Damage Thresholds
