Energy Detectors
Our pyroelectric energy meters cover a very wide range, going from nanojoules to several tens of joules per pulse. We also have them either in standalone formats, where the electronics are integrated in the head, or as standard sensors that you hook up to an energy meter.
QE12
- Modular Concept Increase the power capability of your detector: 2 different cooling modules
- Low Noise Level 0.7 µJ for the MB coating
- QED Attenuator Available Measure up to 5X higher energies. Available with optional calibration, all wavelengths between 532 & 1064 nm, or single wavelength
- Available with Metallic Absorber High Repetition Rate (6000 Hz)
- Test Target Included With the MB models
- Smart Interface Containing all the calibration data
-
Compatible Monitors
MAESTRO
S-LINK-2
| Description | Image | P/N |
|---|---|---|
| STAND-D-233 --- Stand with 2 x 3in Base, 3in Cylinder, Delrin Post, ¼-20 & 8-32 |
|
200428 |
| DB15-BNC --- DB-15 to BNC Adaptor |
|
200036 |
| QED-12 --- Attenuator for QE12 |
|
201200 |
| PEL-XXXX --- Pelican Carrying Case (Many sizes available) |
|
Call |
| Category | Description | Version | Download | |
|---|---|---|---|---|
| Documentation | Specifications Sheet | 2012_V1.0 | 206 KB |  |
| Documentation | User Manual | 2.5 | 958 KB | |
| Documentation | Energy Detectors Section | 2012_V1.0 | 952 KB | |
| Drawings | Outline Drawing | 8518-A | 116 KB | |
| Documentation | Absorption Curves | 2012_V1.0 | 88 KB | |
| Documentation | White Papers | 2012_V1.0 | 72 KB | |
| Documentation | White Papers | 2012_V1.0 | 416 KB | |
| Drawings | STEP | 9126 | 324 KB |  |
| Name | Description | Image | P/N |
|---|---|---|---|

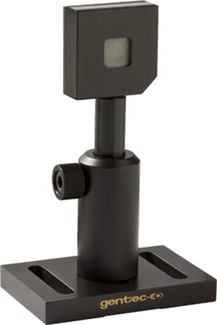

| QE12LP-S-MB | 12 x 12 mm, Standalone, Broadband Coating. Includes stand. |
|
200508 |
| QE12LP-S-MB-D0 | 12 x 12 mm, Standalone, Broadband Coating. No stand. |
|
200526 |
| QE12LP-S-MB-C0 | 12 x 12 mm, Standalone, Broadband Coating, BNC Connector. No stand. |
|
200826 |

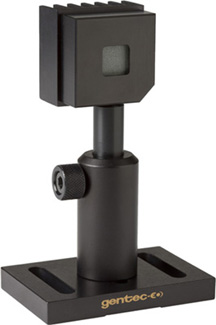

| QE12LP-H-MB | 12 x 12 mm, Heatsink, Broadband Coating. Includes stand. |
|
200510 |
| QE12LP-H-MB-D0 | 12 x 12 mm, Heatsink, Broadband Coating. No stand. |
|
200528 |
| QE12LP-H-MB-C0 | 12 x 12 mm, Heatsink, Broadband Coating, BNC Connector No stand. |
|
200827 |

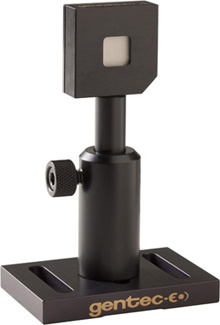

| QE12SP-S-MT | 12 x 12 mm, Standalone, Metallic Coating. Includes stand. |
|
200511 |
| QE12SP-S-MT-D0 | 12 x 12 mm, Standalone, Metallic Coating. No stand. |
|
200531 |
| QE12SP-S-MT-C0 | 12 x 12 mm, Standalone, Metallic Coating, BNC Connector No stand. |
|
200822 |
| QE12SP-H-MT | 12 x 12 mm, Heatsink, Metallic Coating. Includes stand. |
|
200512 |
| QE12SP-H-MT-D0 | 12 x 12 mm, Heatsink, Metallic Coating. No stand. |
|
200532 |
| QE12SP-H-MT-C0 | 12 x 12 mm, Heatsink, Metallic Coating, BNC Connector No stand. |
|
200823 |
| QE12ELP-S-MB-D0 | 12 x 12 mm, Standalone, Broadband Coating, Extra-long pulse capability. No stand. |
|
200529 |
| QE12ELP-S-MB-C0 | 12 x 12 mm, Standalone, Broadband Coating, Extra-long pulse capability, BNC Connector. No stand. |
|
200828 |
| QE12ELP-H-MB-D0 | 12 x 12 mm, Heatsink, Broadband Coating, Extra-long pulse capability. No stand. |
|
200530 |
| QE12ELP-H-MB-C0 | 12 x 12 mm, Heatsink, Broadband Coating, Extra-long pulse capability, BNC Connector. No stand. |
|
200829 |
