Energy Detectors
Our pyroelectric energy meters cover a very wide range, going from nanojoules to several tens of joules per pulse. We also have them either in standalone formats, where the electronics are integrated in the head, or as standard sensors that you hook up to an energy meter.
QE65
- Modular Concept Increase the power capability of your detector: 2 different cooling modules
- large Aperture Effective aperture of 65 x 65 mm
- QED Attenuator Available Measure up to 5X higher energies. Available with optional calibration, all wavelengths between 532 & 1064 nm, or single wavelength
- Low Noise Level 10 µJ for the MB coating
- Test Target Included With the MB models
- Smart Interface Containing all the calibration data
-
Compatible Monitors
MAESTRO
S-LINK-2
| Description | Image | P/N |
|---|---|---|
| STAND-D-233 --- For standalone (-S) model: Stand with 2 x 3in Base, 3in Cylinder, Delrin Post, ¼-20 & 8-32 |
|
200428 |
| STAND-D-443 --- For heatsink (-H) model: Stand with 4 x 4in Base, 3in Cylinder, Delrin Post, ¼-20 & 8-32 |
|
201284 |
| DB15-BNC --- DB-15 to BNC Adaptor |
|
200036 |
| QED-65 --- Attenuator for QE65 |
|
201282 |
| PEL-XXXX --- Pelican Carrying Case (Many sizes available) |
|
Call |
| Category | Description | Version | Download | |
|---|---|---|---|---|
| Documentation | Specifications Sheet | 2012_V1.0 | 213 KB |  |
| Documentation | User Manual | 2.5 | 958 KB | |
| Documentation | Energy Detectors Section | 2012_V1.0 | 952 KB | |
| Drawings | Outline Drawing | 9009 | 121 KB | |
| Documentation | Absorption Curves | 2012_V1.0 | 88 KB | |
| Documentation | White Papers | 2012_V1.0 | 72 KB | |
| Documentation | White Papers | 2012_V1.0 | 416 KB | |
| Drawings | STEP | 9131 | 358 KB |  |
| Drawings | STEP | 9132 | 460 KB | |
| Name | Description | Image | P/N |
|---|---|---|---|

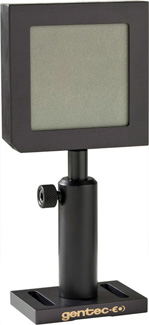

| QE65LP-S-MB | 65 x 65 mm, Standalone, Broadband Coating. Includes stand. |
|
201255 |
| QE65LP-S-MB-D0 | 65 x 65 mm, Standalone, Broadband Coating. No stand. |
|
201251 |
| QE65LP-S-MB-C0 | 65 x 65 mm, Standalone, Broadband Coating, BNC Connector. No stand. |
|
201252 |

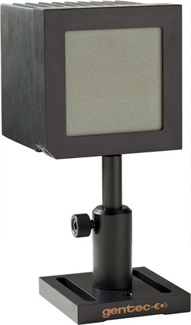

| QE65LP-H-MB | 65 x 65 mm, Heatsink, Broadband Coating. Includes stand. |
|
201256 |
| QE65LP-H-MB-D0 | 65 x 65 mm, Heatsink, Broadband Coating. No stand. |
|
201253 |
| QE65LP-H-MB-C0 | 65 x 65 mm, Heatsink, Broadband Coating, BNC Connector. No stand. |
|
201254 |
| QE65ELP-S-MB | 65 x 65 mm, Standalone, Broadband Coating, Extra-long pulse capability. Includes stand. |
|
201324 |
| QE65ELP-S-MB-D0 | 65 x 65 mm, Standalone, Broadband Coating, Extra-long pulse capability. No stand. |
|
201279 |
| QE65ELP-S-MB-C0 | 65 x 65 mm, Standalone, Broadband Coating, Extra-long pulse capability, BNC Connector. No stand. |
|
201326 |
| QE65ELP-H-MB | 65 x 65 mm, Heatsink, Broadband Coating, Extra-long pulse capability. Includes stand. |
|
201325 |
| QE65ELP-H-MB-D0 | 65 x 65 mm, Heatsink, Broadband Coating, Extra-long pulse capability. No stand. |
|
201280 |
| QE65ELP-H-MB-C0 | 65 x 65 mm, Heatsink, Broadband Coating, Extra-long pulse capability, BNC Connector. No stand. |
|
201327 |
