OEM Detectors
Almost anything you see in our product line can be turned into an OEM unit! We also offer standard OEM products, at different levels of integration: from the simple thermopile disk to a complete head with internal PCB for signal anticipation and amplification.
.jpg)
.jpg)
QS-IL
- High Voltage Response in Current ModeThis family of pyro detectors offers a 1011 Ω chip resistor that results in an incredible 50 000 V/W voltage response
- Low Noise Level The high voltage response allows to detect signals down in the nW range!
- Easy to Integrate Format TO5 and TO8 packages make the QS-IL detectors small and easy to integrate in an existing system
- Large Area Sensors 5 mm and 9 mm diameter pyroelectric sensors make optical alignment easier
-
Several IR Windows in Option
- Quartz: 0.2 – 3.5 µm
- Barium Fluoride: 0.2 – 17.5 µm
- Sapphire: 0.1 – 7.0 µm
- Silicon: 1.2 – 9.0 µm and 22 – 100 µm
- AR Germanium: 1.8 – 23 µm (10.6 µm peak)
| Name | Description | Image | P/N |
|---|---|---|---|

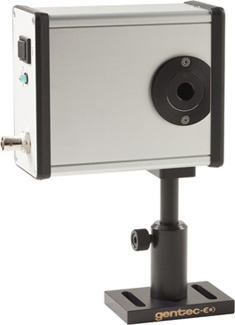

| QS-I-TEST | Evaluation Test Box for QS Detectors (in current mode) |
|
201693 |
| Q5 | Permanent Quartz Window (0.2 – 3.5 µm) for TO5-based QS Detectors |
|
N/A |
| Q8 | Permanent Quartz Window (0.2 – 3.5 µm) for TO8-based QS Detectors |
|
N/A |
| B5 | Permanent Barium Fluoride Window (0.2 – 17.5 µm) for TO5-based QS Detectors |
|
N/A |
| B8 | Permanent Barium Fluoride Window (0.2 – 17.5 µm) for TO8-based QS Detectors |
|
N/A |
| S5 | Permanent Sapphire window for TO5-based QS Detectors |
|
N/A |
| S8 | Permanent Sapphire window for TO8-based QS Detectors |
|
N/A |
| Si5 | Permanent Silicon Window (1.2 – 9.0 µm and 22 – 100 µm) for TO5-based QS Detectors |
|
N/A |
| Si8 | Permanent Silicon Window (1.2 – 9.0 µm and 22 – 100 µm) for TO8-based QS Detectors |
|
N/A |
| G5 | Permanent AR Germanium Window (1.8 – 23 µm with 10.6 µm peak) for TO5-based QS Detectors |
|
N/A |
| G8 | Permanent AR Germanium Window (1.8 – 23 µm with 10.6 µm peak) for TO8-based QS Detectors. |
|
N/A |
| Z5 | Permanent Zinc Selenide Window (0.6 – 22 µm with 10.6 µm peak) for TO5-based QS Detectors (not for QS-THZ) |
|
N/A |
| Z8 | Permanent Zinc Selenide Window (0.6 – 22 µm with 10.6 µm peak) for TO8-based QS Detectors (not for QS-THZ) |
|
N/A |
| BL | Organic Black Coating | Call |
| Category | Description | Version | Download | |
|---|---|---|---|---|
| Documentation | Specifications Sheet | 2012_V1.0 | 547 KB |  |
| Documentation | OEM Detectors Section | 2012_V1.0 | 704 KB | |
| Documentation | Application Note | 121D-201925 | 201 KB | |
| Documentation | Application Note | 121D-201926 | 207 KB | |
| Documentation | Application Note | 121D-201927 | 93 KB | |
| Documentation | Application Note | 121D-201928 | 194 KB | |
| Documentation | Application Note | 121D-201931 | 74 KB | |
| Drawings | Outline Drawing (TO5 and TO8 Packages) |
9113 | 225 KB | |
| Name | Description | Image | P/N |
|---|---|---|---|
| QS1-IL | 1 mm Ø, Hybrid Pyroelectric Sensor with Chromium Coating, Current Mode, Low Noise Level, in TO5 Packaging. | 201684 | |

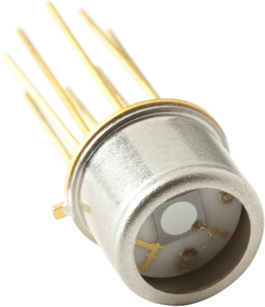

| QS2-IL | 2 mm Ø, Hybrid Pyroelectric Sensor with Chromium Coating, Current Mode, Low Noise Level, in TO5 Packaging. |
|
201685 |
| QS3-IL | 3 mm Ø, Hybrid Pyroelectric Sensor with Chromium Coating, Current Mode, Low Noise Level, in TO5 Packaging. | 201686 | |

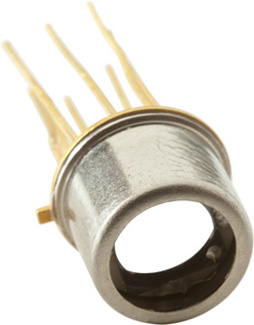

| QS5-IL | 5 mm Ø, Hybrid Pyroelectric Sensor with Chromium Coating, Current Mode, Low Noise Level, in TO5 Packaging. |
|
201687 |
| QS9-IL | 9 mm Ø, Hybrid Pyroelectric Sensor with Chromium Coating, Current Mode, Low Noise Level, in TO8 Packaging. | 201688 |
