OEM Detectors
Almost anything you see in our product line can be turned into an OEM unit! We also offer standard OEM products, at different levels of integration: from the simple thermopile disk to a complete head with internal PCB for signal anticipation and amplification.
.jpg)
.jpg)
QS-VL
- Low Noise Level in Voltage ModeUltra low noise Field-Effect Transistor (FET) and GΩ resistor for unparalleled performance from 1 Hz to 1 KHz
- High Voltage ResponseUp to 900 V/W
- Easy to Integrate FormatTO5 and TO8 packages make the QS-VL detectors small and easy to integrate in an existing system
- Large Area Sensors5 mm and 9 mm diameter pyroelectric sensors make optical alignment easier
-
Several IR Windows in Option
- Quartz: 0.2 – 3.5 µm
- Barium Fluoride: 0.2 – 17.5 µm
- Sapphire: 0.1 – 7.0 µm
- Silicon: 1.2 – 9.0 µm and 22 – 100 µm
- AR Germanium: 1.8 – 23 µm (10.6 µm peak)
| Name | Description | Image | P/N |
|---|---|---|---|

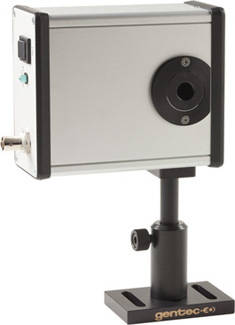

| QS-V-TEST | Test Box for QS detectors (on voltage mode) |
|
201694 |
| Q5 | Permanent Quartz Window (0.2 – 3.5 µm) for TO5-based QS Detectors |
|
N/A |
| Q8 | Permanent Quartz Window (0.2 – 3.5 µm) for TO8-based QS Detectors |
|
N/A |
| B5 | Permanent Barium Fluoride Window (0.2 – 17.5 µm) for TO5-based QS Detectors |
|
N/A |
| B8 | Permanent Barium Fluoride Window (0.2 – 17.5 µm) for TO8-based QS Detectors |
|
N/A |
| S5 | Permanent Sapphire window for TO5-based QS Detectors |
|
N/A |
| S8 | Permanent Sapphire window for TO8-based QS Detectors |
|
N/A |
| Si5 | Permanent Silicon Window (1.2 – 9.0 µm and 22 – 100 µm) for TO5-based QS Detectors |
|
N/A |
| Si8 | Permanent Silicon Window (1.2 – 9.0 µm and 22 – 100 µm) for TO8-based QS Detectors |
|
N/A |
| G5 | Permanent AR Germanium Window (1.8 – 23 µm with 10.6 µm peak) for TO5-based QS Detectors |
|
N/A |
| G8 | Permanent AR Germanium Window (1.8 – 23 µm with 10.6 µm peak) for TO8-based QS Detectors. |
|
N/A |
| Z5 | Permanent Zinc Selenide Window (0.6 – 22 µm with 10.6 µm peak) for TO5-based QS Detectors (not for QS-THZ) |
|
N/A |
| Z8 | Permanent Zinc Selenide Window (0.6 – 22 µm with 10.6 µm peak) for TO8-based QS Detectors (not for QS-THZ) |
|
N/A |
| BL | Organic Black Coating | Call |
| Category | Description | Version | Download | |
|---|---|---|---|---|
| Documentation | Specifications Sheet | 2012_V1.0 | 547 KB |  |
| Documentation | OEM Detectors Section | 2012_V1.0 | 704 KB | |
| Documentation | Application Note | 121D-201927 | 93 KB | |
| Documentation | Application Note | 121D-201931 | 74 KB | |
| Drawings | Outline Drawing (TO5 and TO8 Packages) |
9113 | 225 KB | |
| Name | Description | Image | P/N |
|---|---|---|---|
| QS1-VL | 1 mm Ø, Hybrid Pyroelectric Sensor with Chromium Coating, Voltage Mode, Low Noise Level in TO5 Packaging. | 201673 | |

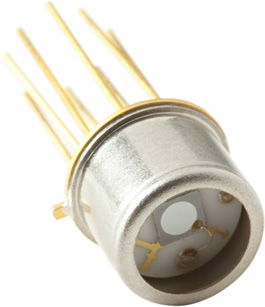

| QS2-VL | 2 mm Ø, Hybrid Pyroelectric Sensor with Chromium Coating, Voltage Mode, Low Noise Level in TO5 Packaging. |
|
201674 |
| QS3-VL | 3 mm Ø, Hybrid Pyroelectric Sensor with Chromium Coating, Voltage Mode, Low Noise Level in TO5 Packaging. | 201676 | |

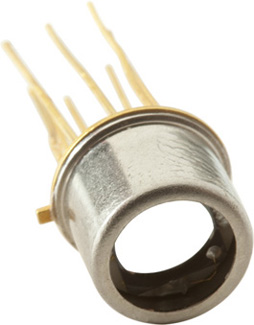

| QS5-VL | 5 mm Ø, Hybrid Pyroelectric Sensor with Chromium Coating, Voltage Mode, Low Noise Level in TO5 Packaging. |
|
201677 |
| QS9-VL | 9 mm Ø, Hybrid Pyroelectric Sensor with Chromium Coating, Voltage Mode, Low Noise Level in TO8 Packaging. | 201678 |
