OEM Detectors
Almost anything you see in our product line can be turned into an OEM unit! We also offer standard OEM products, at different levels of integration: from the simple thermopile disk to a complete head with internal PCB for signal anticipation and amplification.
UP Series
- Fully Integrable Thermopile Sensor Heads OEM Sensors designed to integrate easily into existing systems
- Modular ConceptIncrease the power capability of your detector: 5 different cooling modules
- Very High Damage ThresholdsUp to 100 kW/cm2 in average power density
- Choice of connectorsDB-15, BNC, Molex
-
Compatible Monitors
MAESTRO
TUNER
UNO
S-LINK-2
P-LINK -
LEVELS OF INTEGRATION
Head Only-
Thermal Sensor Head (with natural response) - Choice of connectors

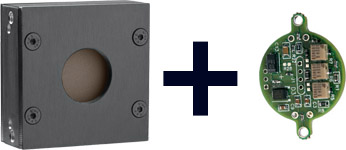

Head with PCB & Connector-
Thermal Sensor Head - Internal PCB: Amplification - Anticipation - Filtering
- Choice of connectors

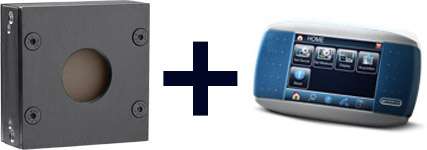

Head & Display-
Thermal Sensor Head - Choice of connectors
- Choice of displays
-
| Name | Description | Image | P/N |
|---|---|---|---|
| No accessories | |||
| Category | Description | Version | Download | |
|---|---|---|---|---|
| Documentation | Specifications Sheet | 2012_V1.0 | 249 KB |  |
| Documentation | OEM Detectors Section | 2012_V1.0 | 704 KB | |
| Drawings | Outline Drawing | 8456 | 114 KB | |
| Drawings | Outline Drawing | 8473-A | 303 KB | |
| Drawings | Outline Drawing | 8474-A | 224 KB | |
| Drawings | Outline Drawing | 8477-C | 248 KB | |
| Drawings | Outline Drawing | 8478-A | 122 KB | |
| Name | Description | Image | P/N |
|---|---|---|---|
| UP12E-10S-H5-CO | 12 mm Ø, Standalone, 10 W, BNC Output |
|
200391 |
| UP12E-20H-H5-CO | 12 mm Ø, Heatsink, 20 W, BNC Output |
|
200392 |
| UP12E-70W-H5-CO | 12 mm Ø, Water-Cooled, 70 W, BNC Output |
|
200394 |
| UP19K-15S-H5-CO | 19 mm Ø, Standalone, 15 W, BNC Output |
|
200146 |
| UP19K-15S-H5-CP | 19 mm Ø, Standalone, 15 W, BNC Output, Potentiometer |
|
200654 |
| UP19K-30H-H5-CO | 19 mm Ø, Heatsink, 30 W, BNC Output |
|
200147 |
| UP19K-30H-H5-CP | 19 mm Ø, Heatsink, 30 W, BNC Output, Potentiometer |
|
200655 |
| UP19K-50L-H5-CO | 19 mm Ø, Large Heatsink, 50 W, BNC Output |
|
200165 |
| UP19K-50L-H5-CP | 19 mm Ø, Large Heatsink, 50 W, BNC Output, Potentiometer |
|
200656 |
| UP19K-100DI-H5-CO | 19 mm Ø, Stainless Steel Water-Cooling Module, 100 W, BNC Output | 200189 | |
| UP19K-100DI-H5-CP | 19 mm Ø, Stainless Steel Water-Cooling Module, 100 W, BNC Output, Potentiometer | 200249 | |
| UP19K-110F-H9-CO (US) | 19 mm Ø, Fan-Cooled, 110 W, BNC Output, US Power Cord Included |
.jpg)
|
200995B |
| UP19K-110F-H9-CO (Europe) | 19 mm Ø, Fan-Cooled, 110 W, BNC Output, Europe Power Cord Included |
.jpg)
|
200995C |
| UP19K-110F-H9-CO (UK) | 19 mm Ø, Fan-Cooled, 110 W, BNC Output, UK Power Cord Included |
.jpg)
|
200995G |
| UP19K-150W-H5-CO | 19 mm Ø, Water-Cooled, 150 W, BNC Output |
|
200148 |
| UP19K-150W-H5-CP | 19 mm Ø, Water-Cooled, 150 W, BNC Output, Potentiometer |
|
200658 |
| UP19K-200W-H9-CO | 19 mm Ø, Water-Cooled, 200 W, BNC Output |
|
200584 |
| UP19K-15S-W5-CO | 17 mm Ø, Standalone, 15 W, BNC Output |
|
200286 |
| UP19K-15S-W5-CP | 17 mm Ø, Standalone, 15 W, BNC Output, Potentiometer |
|
200665 |
| UP25N-40S-H9-CO | 25 mm Ø, Standalone, 40 W, BNC Output |
|
200196 |
| UP25N-40S-H9-CP | 25 mm Ø, Standalone, 40 W, BNC Output, Potentiometer |
|
200685 |
| UP25N-100H-H9-CO | 25 mm Ø, Heatsink, 100 W, BNC Output |
|
200200 |
| UP25N-100H-H9-CP | 25 mm Ø, Heatsink, 100 W, BNC Output, Potentiometer |
|
200686 |
| UP25N-250F-H12-CO (US) | 25 mm Ø, Fan-Cooled, 250 W, BNC Output, US Power Cord Included |
.jpg)
|
201152B |
| UP25N-250F-H12-CO (Europe) | 25 mm Ø, Fan-Cooled, 250 W, BNC Output, Europe Power Cord Included |
.jpg)
|
201152C |
| UP25N-250F-H12-CO (UK) | 25 mm Ø, Fan-Cooled, 250 W, BNC Output, UK Power Cord Included |
.jpg)
|
201152G |
| UP25N-250F-H12-CP (US) | 25 mm Ø, Fan-Cooled, 250 W, BNC Output, Potentiometer, US Power Cord Included |
.jpg)
|
201156B |
| UP25N-250F-H12-CP (Europe) | 25 mm Ø, Fan-Cooled, 250 W, BNC Output, Potentiometer, Europe Power Cord Included |
.jpg)
|
201156C |
| UP25N-250F-H12-CP (UK) | 25 mm Ø, Fan-Cooled, 250 W, BNC Output, Potentiometer, UK Power Cord Included |
.jpg)
|
201156G |
| UP25M-350W-H12-CO | 25 mm Ø, Water-Cooled, 350 W, BNC Output |
|
201898 |
| UP25M-350W-H12-CP | 25 mm Ø, Water-Cooled, 350 W, BNC Output, Potentiometer |
|
201900 |
| UP50N-40S-W9-CO | 50 mm Ø, Standalone, 40 W, BNC Output |
|
200900 |
| UP50N-50H-W9-CO | 50 mm Ø, Heatsink, 50 W, BNC Output |
|
200901 |
| UP50N-50W-W9-CO | 50 mm Ø, Water-Cooled, 50 W, BNC Output | 200903 | |
| UP55N-40S-H9-CO | 55 mm Ø, Standalone, 40 W, BNC Output |
|
200216 |
| UP55N-40S-H9-CP | 55 mm Ø, Standalone, 40 W, BNC Output, Potentiometer |
|
200692 |
| UP55N-100H-H9-CO | 55 mm Ø, Heatsink, 100 W, BNC Output |
|
200220 |
| UP55N-100H-H9-CP | 55 mm Ø, Heatsink, 100 W, BNC Output, Potentiometer |
|
200693 |
| UP55N-300F-H12-CO (US) | 55 mm Ø, Fan-Cooled, 300 W, BNC Output, US Power Cord Included |
.jpg)
|
201158B |
| UP55N-300F-H12-CO (Europe) | 55 mm Ø, Fan-Cooled, 300 W, BNC Output, Europe Power Cord Included |
.jpg)
|
201158C |
| UP55N-300F-H12-CO (UK) | 55 mm Ø, Fan-Cooled, 300 W, BNC Output, UK Power Cord Included |
.jpg)
|
201158G |
| UP55N-400W-H12-CO | 55 mm Ø, Water-Cooled, 400 W, BNC Output |
|
200228 |
| UP55N-400W-H12-CP | 55 mm Ø, Water-Cooled, 400 W, BNC Output, Potentiometer |
|
200695 |
