Power Detectors
Get accurate measurements with fast response times with our thermopile or pyroelectric power meters. Available with various absorbers, with the highest damage thresholds you can find in their category, our power meters cover a wide range going from the nanowatts to multi-kilowatts.
HP
- High Power Handling Handles up to 12 kW of continuous power
- Thermally Stable Less sensitive to variations in water cooling temperature
- Large Aperture Our standard HP models (3KW and 12KW) have a very large effective aperture of 100 mm Ø to accomodate even the largest laser beams
- Direct USB Connection to a PC Each head comes with both a DB-15 connector (for use with a Gentec-EO monitor) and a USB2.0 output for direct connection to a PC
- Custom Model for Small Beams 10 kW model with reflective cone available upon request. Perfect for small beams (with Avg Power Densities up to 10 kW/cm2)
-
Compatible Monitors
MAESTRO
TUNER
UNO
S-LINK-2
P-LINK
| Description | Image | P/N |
|---|---|---|
| STAND-S-443-C --- Stand, 4 x 4in Base, 3in Cylinder, 3in Steel Post, 8-32 & ¼-20 |
|
201102 |
| EXT-4 --- Extension Cable (4 m) |
|
Call |
| EXT-15 --- Extension Cable (15 m) |
|
Call |
| EXT-20 --- Extension Cable (20 m) |
|
Call |
| EXT-25 --- Extension Cable (25 m) |
|
Call |
| MON-USB --- USB Cable : P-LINK, S-LINK-2, M-LINK, Mach Series, T-Rad-USB and QUAD-4Track |
|
100776 |
| PEL-XXXX --- Pelican Carrying Case (Many sizes available) |
|
Call |
| Category | Description | Version | Download | |
|---|---|---|---|---|
| Documentation | User Manual | 1.8 | 979 KB |  |
| Software & Firmware | LabView Drivers for 6.1+ | 1.0 | 44 KB |  |
| Software & Firmware | PC Software Interface | 1.00.16 | 632 KB | |
| Software & Firmware | USB Drivers | 8.14 | 1 MB | |
| Documentation | Specifications sheet | 2012_V1.0 | 264 KB | |
| Drawings | Outline Drawing | 8773C | 120 KB | |
| Drawings | Outline Drawing | 9077C | 122 KB | |
| Drawings | STEP | 8998B | 1 MB | |
| Drawings | STEP | 9163A | 1 MB | |
| Name | Description | Image | P/N |
|---|---|---|---|

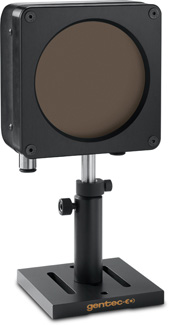

| HP100A-3KW-HE (Imperial) | 100 mm Ø, 3000 W, DB-15 and USB. Imperial Water Plug. Includes stand. |
|
201963I |
| HP100A-3KW-HE (Metric) | 100 mm Ø, 3000 W, DB-15 and USB. Metric Water Plug. Includes stand. |
|
201963M |
| HP100A-3KW-HE-D0 (Imperial) | 100 mm Ø, 3000 W, DB-15 and USB. Imperial Water Plug. No stand. |
|
201962I |
| HP100A-3KW-HE-D0 (Metric) | 100 mm Ø, 3000 W, DB-15 and USB. Metric Water Plug. No stand. |
|
201962M |

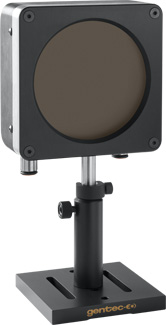

| HP100A-12KW-HD (Imperial) | 100 mm Ø, 12 000 W, DB-15 and USB. Imperial Water Plug. Includes stand. |
|
201329I |
| HP100A-12KW-HD (Metric) | 100 mm Ø, 12 000 W, DB-15 and USB. Metric Water Plug. Includes stand. |
|
201329M |
| HP100A-12KW-HD-D0 (Imperial) | 100 mm Ø, 12 000 W, DB-15 and USB. Imperial Water Plug. No stand. |
|
201328I |
| HP100A-12KW-HD-D0 (Metric) | 100 mm Ø, 12 000 W, DB-15 and USB. Metric Water Plug. No stand. |
|
201328M |

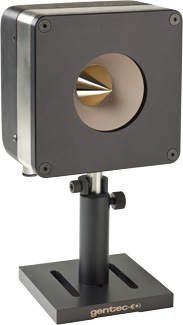

| HP60A-10KW-GD (Imperial) | 60 mm Ø, 10 000 W, Gold Reflector, DB-15 and USB. Imperial Water Plug. Includes stand. |
|
201306I |
| HP60A-10KW-GD (Metric) | 60 mm Ø, 10 000 W, Gold Reflector, DB-15 and USB. Metric Water Plug. Includes stand. |
|
201306M |
| HP60A-10KW-GD-D0 (Imperial) | 60 mm Ø, 10 000 W, Gold Reflector, DB-15 and USB. Imperial Water Plug. No stand. |
|
201305I |
| HP60A-10KW-GD-D0 (Metric) | 60 mm Ø, 10 000 W, Gold Reflector, DB-15 and USB. Metric Water Plug. No stand. |
|
201305M |
