Power Detectors
Get accurate measurements with fast response times with our thermopile or pyroelectric power meters. Available with various absorbers, with the highest damage thresholds you can find in their category, our power meters cover a wide range going from the nanowatts to multi-kilowatts.
UM-B
- Very Low Noise Level Noise levels of a photo detector, but with the large bandwidth of a pyroelectric: Down to 5 nW when using the Analog Power Module (APM)
- Very High Responsivity Up to 20 000 V/W when using the analog power module (APM)
- Very Large Bandwidth From DUV to FIR thanks to pyroelectric technology
- Smart Interface Containing all the calibration data
| Name | Description | Image | P/N |
|---|---|---|---|
| STAND-D-233 | Stand with 2 x 3in Base, 3in Cylinder, Delrin Post, ¼-20 & 8-32 |
|
200428 |
| QW | Interchangeable Quartz Window (0.15-2.6 ; 2.75-4.8 µm) |
|
201563 |
| BW | Interchangeable Barium Fluoride Window (0.2-17.5 µm) |
|
201492 |
| SW | Interchangeable Sapphire Window (0.1-7 µm) |
|
201745 |
| SiW | Interchangeable Silicon Window (1.1-9 ; 22-1000 µm) |
|
201651 |
| GW | Austauschbares AR-Bariumfluorid-Fenster (2-22 µm) |
|
201540 |
| ZW | Interchangeable Zinc Selenide Window (0.6-22 µm) |
|
201754 |
| PEW | Interchangeable Polyethelene Window (0.3-20 THz) |
|
201559 |
| FOA-FULL-FC | FC Fiber Optic Adaptor |
|
100905 |
| SM1A7 | Alignment Crosshair |
|
201652 |
| SM1A8 | IR Alignment Aide |
|
201653 |
| SDC-5000 | Digital Optical Chopper |
|
102855 |
| PEL-XXXX | Pelican Carrying Case (Many sizes available) |
|
Call |
| APM | Analog power module, to interface -B heads with oscilloscopes and lock-in amplifiers. |
|
201495 |
| Category | Description | Version | Download | |
|---|---|---|---|---|
| Documentation | Specifications Sheet | 2012_V1.0 | 186 KB |  |
| Documentation | Power Detectors Section | 2012_V1.0 | 2 MB | |
| Documentation | Absorption Curves | 2012_V1.0 | 171 KB | |
| Name | Description | Image | P/N |
|---|---|---|---|

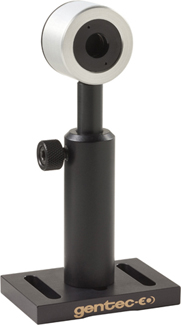

| UM9B-BL | 9 mm Ø, Pyroelectric Sensor with Organic Black Coating. No stand. |
|
201527 (DPM) 201522 (APM) |
