Power Detectors
Get accurate measurements with fast response times with our thermopile or pyroelectric power meters. Available with various absorbers, with the highest damage thresholds you can find in their category, our power meters cover a wide range going from the nanowatts to multi-kilowatts.
.jpg)
UP17P
- Ultra Thin Casing Only 10.7 mm thick!
-
Choice Between 2 Absorbers
- H5: 36 kW/cm2
- W5: Unequalled 100 kW/cm2
- High “Power to Size” Ratio 6 W continuous reading
- Energy ModeMeasure single shot energy up to 200 J (with the W5 version)
- Smart Interface Containing all the calibration data
-
Compatible Monitors
MAESTRO
M-LINK
TUNER
UNO
S-LINK-2
P-LINK
| Name | Description | Image | P/N |
|---|---|---|---|
| STAND-S-233 | Stand, 2 x 3in Base, 3in Cylinder, Steel Post, 8-32 & ¼-20 |
|
200160 |
| EXT-4 | Extension Cable (4 m) |
|
Call |
| EXT-15 | Extension Cable (15 m) |
|
Call |
| EXT-20 | Extension Cable (20 m) |
|
Call |
| EXT-25 | Extension Cable (25 m) |
|
Call |
| PEL-XXXX | Pelican Carrying Case (Many sizes available) |
|
Call |
| Category | Description | Version | Download | |
|---|---|---|---|---|
| Documentation | Specifications Sheet | 2012_V1.0 | 178 KB |  |
| Documentation | User Manual | 4.3 | 1 MB | |
| Documentation | Power Detectors Section | 2012_V1.0 | 2 MB | |
| Drawings | Outline Drawing | 8589-A | 37 KB | |
| Drawings | STEP | 8958 | 246 KB |  |
| Name | Description | Image | P/N |
|---|---|---|---|

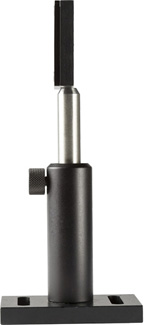

| UP17P-6S-H5 | 17 mm Ø, 6 W, Standalone, 36 kW/cm2. Includes stand. |
|
201036 |
| UP17P-6S-H5-D0 | 17 mm Ø, 6 W, Standalone, 36 kW/cm2. No stand. |
|
201033 |
| UP17P-6S-W5 | 17 mm Ø, 6 W, Standalone, 100 kW/cm2. Includes stand. |
|
201037 |
| UP17P-6S-W5-D0 | 17 mm Ø, 6 W, Standalone, 100 kW/cm2. No stand. |
|
201021 |
