Power Detectors
Get accurate measurements with fast response times with our thermopile or pyroelectric power meters. Available with various absorbers, with the highest damage thresholds you can find in their category, our power meters cover a wide range going from the nanowatts to multi-kilowatts.
UP19K-H
- Modular Concept Increase the power capability of your detector: 5 different cooling modules
-
High Performance
- Fast Rise Time (0.6 sec)
- High Damage Threshold (45 kW/cm2)
- Compact Design Only 21 mm thick (15S model)
- Energy Mode Measure single shot energy up to 15 J
- Smart Interface Containing all the calibration data
-
Compatible Monitors
MAESTRO
M-LINK
TUNER
UNO
S-LINK-2
P-LINK
| Name | Description | Image | P/N |
|---|---|---|---|
| STAND-S-233 | Stand, 2 x 3in Base, 3in Cylinder, Steel Post, 8-32 & ¼-20 |
|
200160 |
| EXT-4 | Extension Cable (4 m) |
|
Call |
| EXT-15 | Extension Cable (15 m) |
|
Call |
| EXT-20 | Extension Cable (20 m) |
|
Call |
| EXT-25 | Extension Cable (25 m) |
|
Call |
| UP19K-TUBE | Isolation Tube for UP19K |
|
100966 |
| FOA-19 | Fiber Adaptor (19 mm threaded) (Choose 1 of 3 connectors available): |
|
200180 |
| FOC-FC | FC Fiber Connector |
|
200867 |
| FOC-SC | SC Fiber Connector |
|
200182 |
| FOC-SMA | SMA Fiber Connector |
|
200868 |
| FAN-12V-US | 12V Power Supply for fan-cooled detectors (US) |
.jpg)
|
200130B |
| FAN-12V-EU | 12V Power Supply for fan-cooled detectors (Europe) |
.jpg)
|
200130C |
| FAN-12V-UK | 12V Power Supply for fan-cooled detectors (UK) |
.jpg)
|
200130G |
| Category | Description | Version | Download | |
|---|---|---|---|---|
| Documentation | Specifications Sheet | 2012_V1.0 | 241 KB |  |
| Documentation | User Manual | 4.3 | 1 MB | |
| Documentation | Power Detectors Section | 2012_V1.0 | 2 MB | |
| Drawings | Outline Drawing | 8477-C | 248 KB | |
| Drawings | STEP | 8977 | 1 MB |  |
| Drawings | STEP | 8987 | 1 MB | |
| Drawings | STEP | 9071 | 440 KB | |
| Documentation | White Papers | 2012_V1.0 | 101 KB | |
| Documentation | White Papers | 2012_V1.0 | 416 KB | |
| Documentation | Absorption Curves | 2012_V1.0 | 171 KB | |
| Name | Description | Image | P/N |
|---|---|---|---|

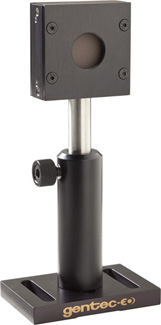

| UP19K-15S-H5 | 19 mm Ø, 15 W, Standalone, 36 kW/cm2. Includes stand. |
|
200173 |
| UP19K-15S-H5-D0 | 19 mm Ø, 15 W, Standalone, 36 kW/cm2. No stand. |
|
200142 |
| UP19K-30H-H5 | 19 mm Ø, 30 W, Heatsink, 36 kW/cm2. Includes stand. |
|
200174 |
| UP19K-30H-H5-D0 | 19 mm Ø, 30 W, Heatsink, 36 kW/cm2. No stand. |
|
200143 |

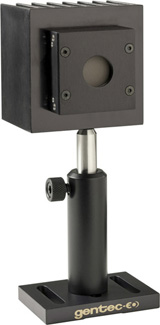

| UP19K-50L-H5 | 19 mm Ø, 50 W, Large Heatsink, 36 kW/cm2. Includes stand. |
|
200175 |
| UP19K-50L-H5-D0 | 19 mm Ø, 50 W, Large Heatsink, 36 kW/cm2. No stand. |
|
200164 |

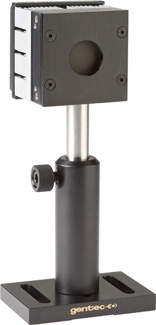

| UP19K-110F-H9 (US) | 19 mm Ø, 110 W, Fan-Cooled, 45 kW/cm2. Includes stand. US power cord included. |
|
200996B |
| UP19K-110F-H9 (Europe) | 19 mm Ø, 110 W, Fan-Cooled, 45 kW/cm2. Includes stand. Europe power cord included. |
|
200996C |
| UP19K-110F-H9 (UK) | 19 mm Ø, 110 W, Fan-Cooled, 45 kW/cm2. Includes stand. UK power cord included. |
|
200996G |
| UP19K-110F-H9-D0 (US) | 19 mm Ø, 110 W, Fan-Cooled, 45 kW/cm2. No stand. US power cord included. |
|
200994B |
| UP19K-110F-H9-D0 (Europe) | 19 mm Ø, 110 W, Fan-Cooled, 45 kW/cm2. No stand. Europe power cord included. |
|
200994C |
| UP19K-110F-H9-D0 (UK) | 19 mm Ø, 110 W, Fan-Cooled, 45 kW/cm2. No stand. UK power cord included. |
|
200994G |
| UP19K-150W-H5 | 19 mm Ø, 150 W, Water-Cooled, 36 kW/cm2. Includes stand. |
|
200177 |
| UP19K-150W-H5-D0 | 19 mm Ø, 150 W, Water-Cooled, 36 kW/cm2. No stand. |
|
200144 |
| UP19K-200W-H9 | 19 mm Ø, 200 W, Water-Cooled, 45 kW/cm2. Includes stand. |
|
200583 |
| UP19K-200W-H9-D0 | 19 mm Ø, 200 W, Water-Cooled, 45 kW/cm2. No stand. |
|
200582 |
| UP19K-100DI-H5 | 19 mm Ø, Stainless Steel Water-Cooling Module, 100 W. Includes stand. | 200319 | |
| UP19K-100DI-H5-D0 | 19 mm Ø, Stainless Steel Water-Cooling Module, 100 W. No stand. | 200577 |
