Power Detectors
Get accurate measurements with fast response times with our thermopile or pyroelectric power meters. Available with various absorbers, with the highest damage thresholds you can find in their category, our power meters cover a wide range going from the nanowatts to multi-kilowatts.
UP19K-VR
- Modular Concept Increase the power capability of your detector: 2 different cooling modules
-
High Peak Power Volume Absorber
- Fast Rise Time (2.5 sec)
- High Damage Threshold (100 GW/cm2 in peak power density)
- Compact Design Only 21 mm thick (15S model)
- Energy Mode Measure single shot energy up to 40 J
- High Durability Absober Average power density of 700 W/cm2 prevents degradation caused by repetitive pulses
- Smart Interface Containing all the calibration data
-
Compatible Monitors
MAESTRO
TUNER
UNO
S-LINK-2
P-LINK
| Description | Image | P/N |
|---|---|---|
| STAND-S-233 --- Stand, 2 x 3in Base, 3in Cylinder, Steel Post, 8-32 & ¼-20 |
|
200160 |
| EXT-4 --- Extension Cable (4 m) |
|
Call |
| EXT-15 --- Extension Cable (15 m) |
|
Call |
| EXT-20 --- Extension Cable (20 m) |
|
Call |
| EXT-25 --- Extension Cable (25 m) |
|
Call |
| PEL-XXXX --- Pelican Carrying Case (Many sizes available) |
|
Call |
| Category | Description | Version | Download | |
|---|---|---|---|---|
| Documentation | Specifications Sheet | 2012_V1.0 | 195 KB |  |
| Documentation | User Manual | 3.7 | 1 MB | |
| Documentation | Power Detectors Section | 2012_V1.0 | 2 MB | |
| Drawings | Outline Drawing | 8477-C | 248 KB | |
| Documentation | White Papers | 2012_V1.0 | 101 KB | |
| Documentation | White Papers | 2012_V1.0 | 416 KB | |
| Name | Description | Image | P/N |
|---|---|---|---|

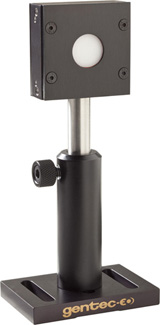

| UP19K-15S-VR | 18 mm Ø, 15 W, Standalone, Volume Absorber. Includes stand. |
|
201149 |
| UP19K-15S-VR-D0 | 18 mm Ø, 15 W, Standalone, Volume Absorber. No stand. |
|
201147 |

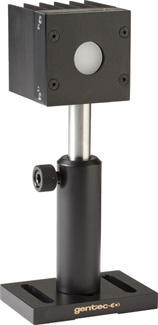

| UP19K-30H-VR | 18 mm Ø, 30 W, Heatsink, Volume Absorber. Includes stand. |
|
201150 |
| UP19K-30H-VR-D0 | 18 mm Ø, 30 W, Heatsink, Volume Absorber. No stand. |
|
201148 |
