Power Detectors
Get accurate measurements with fast response times with our thermopile or pyroelectric power meters. Available with various absorbers, with the highest damage thresholds you can find in their category, our power meters cover a wide range going from the nanowatts to multi-kilowatts.
UP19K-W5
- Modular Concept Increase the power capability of your detector: 5 different cooling modules
- Very High Damage Threshold 100 kW/cm2 in average power density
- Compact Design Only 21 mm thick (15S model)
- Energy Mode Measure single shot energy up to 200 J
- Smart Interface Containing all the calibration data
-
Compatible Monitors
MAESTRO
TUNER
UNO
S-LINK-2
P-LINK
| Description | Image | P/N |
|---|---|---|
| STAND-S-233 --- Stand, 2 x 3in Base, 3in Cylinder, Steel Post, 8-32 & ¼-20 |
|
200160 |
| EXT-4 --- Extension Cable (4 m) |
|
Call |
| EXT-15 --- Extension Cable (15 m) |
|
Call |
| EXT-20 --- Extension Cable (20 m) |
|
Call |
| EXT-25 --- Extension Cable (25 m) |
|
Call |
| FAN-12V-US --- 12V Power Supply for fan-cooled detectors (US) |
.jpg)
|
200130B |
| FAN-12V-EU --- 12V Power Supply for fan-cooled detectors (Europe) |
.jpg)
|
200130C |
| FAN-12V-UK --- 12V Power Supply for fan-cooled detectors (UK) |
.jpg)
|
200130G |
| Category | Description | Version | Download | |
|---|---|---|---|---|
| Documentation | Specifications Sheet | 2012_V1.0 | 227 KB |  |
| Documentation | User Manual | 3.7 | 1 MB | |
| Documentation | Power Detectors Section | 2012_V1.0 | 2 MB | |
| Drawings | Outline Drawing | 8477-C | 248 KB | |
| Documentation | White Papers | 2012_V1.0 | 101 KB | |
| Documentation | White Papers | 2012_V1.0 | 416 KB | |
| Documentation | Absorption Curves | 2012_V1.0 | 171 KB | |
| Name | Description | Image | P/N |
|---|---|---|---|

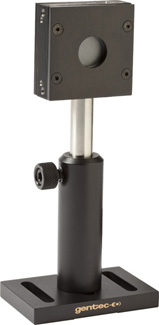

| UP19K-15S-W5 | 17 mm Ø, 15 W, Standalone, 100 kW/cm2. Includes stand. |
|
200295 |
| UP19K-15S-W5-D0 | 17 mm Ø, 15 W, Standalone, 100 kW/cm2. No stand. |
|
200282 |

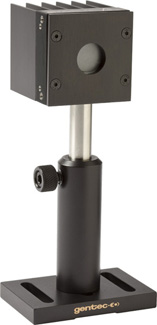

| UP19K-30H-W5 | 17 mm Ø, 30 W, Heatsink, 100 kW/cm2. Includes stand. |
|
200296 |
| UP19K-30H-W5-D0 | 17 mm Ø, 30 W, Heatsink, 100 kW/cm2. No stand. |
|
200284 |

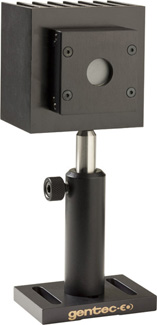

| UP19K-50L-W5 | 17 mm Ø, 50 W, Large Heatsink, 100 kW/cm2. Includes stand. |
|
200297 |
| UP19K-50L-W5-D0 | 17 mm Ø, 50 W, Large Heatsink, 100 kW/cm2. No stand. |
|
200331 |

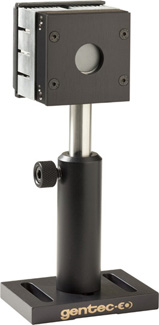

| UP19K-50F-W5 (US) | 17 mm Ø, 50 W, Fan-Cooled, 100 kW/cm2. Includes stand. US power cord included. |
|
200299B |
| UP19K-50F-W5 (Europe) | 17 mm Ø, 50 W, Fan-Cooled, 100 kW/cm2. Includes stand. Europe power cord included. |
|
200299C |
| UP19K-50F-W5 (UK) | 17 mm Ø, 50 W, Fan-Cooled, 100 kW/cm2. Includes stand. UK power cord included. |
|
200299G |
| UP19K-50F-W5-D0 (US) | 17 mm Ø, 50 W, Fan-Cooled, 100 kW/cm2. No stand. US power cord included. |
|
200334B |
| UP19K-50F-W5-D0 (Europe) | 17 mm Ø, 50 W, Fan-Cooled, 100 kW/cm2. No stand. Europe power cord included. |
|
200334C |
| UP19K-50F-W5-D0 (UK) | 17 mm Ø, 50 W, Fan-Cooled, 100 kW/cm2. No stand. UK power cord included. |
|
200334G |
| UP19K-50W-W5 | 17 mm Ø, 50 W, Water-Cooled, 100 kW/cm2. Includes stand. | 200300 | |
| UP19K-50W-W5-D0 | 17 mm Ø, 50 W, Water-Cooled, 100 kW/cm2. No stand. | 200337 |
