Power Detectors
Get accurate measurements with fast response times with our thermopile or pyroelectric power meters. Available with various absorbers, with the highest damage thresholds you can find in their category, our power meters cover a wide range going from the nanowatts to multi-kilowatts.
UP50N-W9
- Modular Concept Increase the power capability of your detector: 4 different cooling modules
- Very High Damage Threshold 100 kW/cm2 in average power density
- Very Large Aperture 50 mm effective aperture diameter, perfect for the largest beams
- Highest Energy Readings in the Series Measure single shot energy up to 500 J
- Smart Interface Containing all the calibration data
-
Compatible Monitors
MAESTRO
M-LINK
TUNER
UNO
S-LINK-2
P-LINK
| Name | Description | Image | P/N |
|---|---|---|---|
| STAND-S-443 | Stand, 4x 4in Base, 3in Cylinder, Steel Post, 8-32 & ¼-20 |
|
200234 |
| EXT-4 | Extension Cable (4 m) |
|
Call |
| EXT-15 | Extension Cable (15 m) |
|
Call |
| EXT-20 | Extension Cable (20 m) |
|
Call |
| EXT-25 | Extension Cable (25 m) |
|
Call |
| FOA-50 | Fiber Adaptor 50 mm threaded (Choose 1 of 3 connectors available): | 200183 | |
| FOA-CYL50 | 50 mm Fiber Cylinder with 3 ports (Choose between 3 connectors available or plug) |
.jpg)
|
200052 |
| FOC-FC | FC Fiber Connector |
|
200867 |
| FOC-SC | SC Fiber Connector |
|
200182 |
| FOC-SMA | SMA Fiber Connector |
|
200868 |
| FOC-PLUG | Plug (to close port of fiber cylinder) |
|
100281 |
| FAN-12V-US | 12V Power Supply for fan-cooled detectors (US) |
.jpg)
|
200130B |
| FAN-12V-EU | 12V Power Supply for fan-cooled detectors (Europe) |
.jpg)
|
200130C |
| FAN-12V-UK | 12V Power Supply for fan-cooled detectors (UK) |
.jpg)
|
200130G |
| PEL-XXXX | Pelican Carrying Case (Many sizes available) |
|
Call |
| Category | Description | Version | Download | |
|---|---|---|---|---|
| Documentation | Specifications Sheet | 2012_V1.0 | 261 KB |  |
| Documentation | User Manual | 4.3 | 1 MB | |
| Documentation | Power Detectors Section | 2012_V1.0 | 2 MB | |
| Drawings | Outline Drawing | 8473-A | 303 KB | |
| Drawings | STEP | 8983 | 601 KB |  |
| Documentation | White Papers | 2012_V1.0 | 101 KB | |
| Documentation | White Papers | 2012_V1.0 | 416 KB | |
| Documentation | Absorption Curves | 2012_V1.0 | 171 KB | |
| Drawings | Outline Drawing | 9096 | 140 KB | |
| Drawings | STEP | 9100 | 1 MB | |
| Name | Description | Image | P/N |
|---|---|---|---|

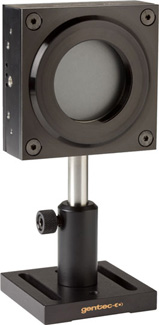

| UP50N-40S-W9 | 50 mm Ø, 40 W, Standalone, 100 kW/cm2. Includes stand. |
|
200896 |
| UP50N-40S-W9-D0 | 50 mm Ø, 40 W, Standalone, 100 kW/cm2. No stand. |
|
200893 |

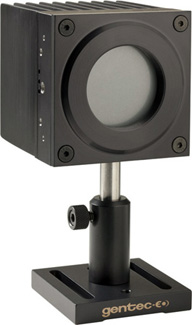

| UP50N-50H-W9 | 50 mm Ø, 50 W, Heatsink, 100 kW/cm2. Includes stand. |
|
200897 |
| UP50N-50H-W9-D0 | 50 mm Ø, 50 W, Heatsink, 100 kW/cm2. No stand. |
|
200884 |

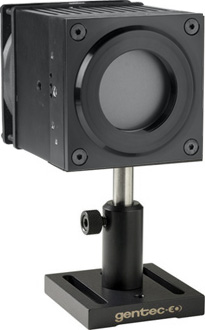

| UP50N-50F-W9 (US) | 50 mm Ø, 50 W, Fan-Cooled, 100 kW/cm2. Includes stand. US power cord included. |
|
200898B |
| UP50N-50F-W9 (Europe) | 50 mm Ø, 50 W, Fan-Cooled, 100 kW/cm2. Includes stand. Europe power cord included. |
|
200898C |
| UP50N-50F-W9 (UK) | 50 mm Ø, 50 W, Fan-Cooled, 100 kW/cm2. Includes stand. UK power cord included. |
|
200898G |
| UP50N-50F-W9-D0 (US) | 50 mm Ø, 50 W, Fan-Cooled, 100 kW/cm2. No stand. US power cord included. |
|
200894B |
| UP50N-50F-W9-D0 (Europe) | 50 mm Ø, 50 W, Fan-Cooled, 100 kW/cm2. No stand. Europe power cord included. |
|
200894C |
| UP50N-50F-W9-D0 (UK) | 50 mm Ø, 50 W, Fan-Cooled, 100 kW/cm2. No stand. UK power cord included. |
|
200894G |

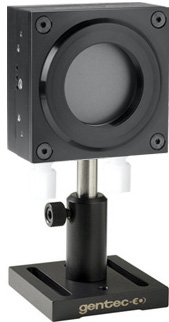

| UP50M-50W-W9 | 50 mm Ø, 50 W, Water-Cooled, 100 kW/cm2. Includes stand. |
|
201887 |
| UP50M-50W-W9-D0 | 50 mm Ø, 50 W, Water-Cooled, 100 kW/cm2. No stand. |
|
201886 |
