Power Detectors
Get accurate measurements with fast response times with our thermopile or pyroelectric power meters. Available with various absorbers, with the highest damage thresholds you can find in their category, our power meters cover a wide range going from the nanowatts to multi-kilowatts.
UP55G
- Fan-Cooled High Power without the need for water cooling
- Portable Perfect for production environments and service technicians
- Special High Power Absorber HD absorber available for continuous readings up to 600 W
- Energy Mode Measure single shot energy up to 200 J
- Smart Interface Containing all the calibration data
-
Compatible Monitors
MAESTRO
M-LINK
TUNER
UNO
S-LINK-2
P-LINK
| Name | Description | Image | P/N |
|---|---|---|---|
| STAND-S-443-C | Stand, 4 x 4in Base, 3in Cylinder, 3in Steel Post, 8-32 & ¼-20 |
|
201102 |
| EXT-4 | Extension Cable (4 m) |
|
Call |
| EXT-15 | Extension Cable (15 m) |
|
Call |
| EXT-20 | Extension Cable (20 m) |
|
Call |
| EXT-25 | Extension Cable (25 m) |
|
Call |
| FOA-COVER50 | UP55 Fiber Adaptor Cover (50 mm threaded). Reduces aperture from 55 to 50 mm for Fiber adaptor or Fiber cylinder. |
|
101135 |
| FOA-50 | Fiber Adaptor 50 mm threaded (Choose 1 of 3 connectors available): | 200183 | |
| FOA-CYL50 | 50 mm Fiber Cylinder with 3 ports (Choose between 3 connectors available or plug) |
.jpg)
|
200052 |
| FOC-FC | FC Fiber Connector |
|
200867 |
| FOC-SC | SC Fiber Connector |
|
200182 |
| FOC-SMA | SMA Fiber Connector |
|
200868 |
| FOC-PLUG | Plug (to close port of fiber cylinder) |
|
100281 |
| UPG-12V-US | 12V-6.66A Power Supply for UP55G (US) |
.jpg)
|
201103B |
| UPG-12V-EU | 12V-6.66A Power Supply for UP55G (Europe) |
.jpg)
|
201103C |
| UPG-12V-UK | 12V-6.66A Power Supply for UP55G (UK) |
.jpg)
|
201103G |
| PEL-XXXX | Pelican Carrying Case (Many sizes available) |
|
Call |
| Category | Description | Version | Download | |
|---|---|---|---|---|
| Documentation | Specifications Sheet | 2012_V1.0 | 252 KB |  |
| Documentation | User Manual | 4.3 | 1 MB | |
| Documentation | Power Detectors Section | 2012_V1.0 | 2 MB | |
| Drawings | Outline Drawing | 8701-A | 166 KB | |
| Drawings | STEP | 8985 | 3 MB |  |
| Documentation | White Papers | 2012_V1.0 | 101 KB | |
| Documentation | White Papers | 2012_V1.0 | 416 KB | |
| Documentation | Absorption Curves | 2012_V1.0 | 171 KB | |
| Name | Description | Image | P/N |
|---|---|---|---|

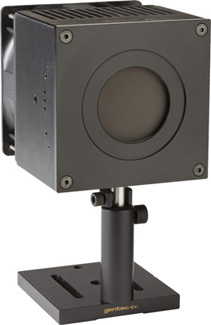

| UP55G-500F-H12 (US) | 55 mm Ø, 500 W, Fan-Cooled. Includes stand. US power cord included. |
|
201100B |
| UP55G-500F-H12 (Europe) | 55 mm Ø, 500 W, Fan-Cooled. Includes stand. Europe power cord included. |
|
201100C |
| UP55G-500F-H12 (UK) | 55 mm Ø, 500 W, Fan-Cooled. Includes stand. UK power cord included. |
|
201100G |
| UP55G-500F-H12-D0 (US) | 55 mm Ø, 500 W, Fan-Cooled. No stand. US power cord included. |
|
201099B |
| UP55G-500F-H12-D0 (Europe) | 55 mm Ø, 500 W, Fan-Cooled. No stand. Europe power cord included. |
|
201099C |
| UP55G-500F-H12-D0 (UK) | 55 mm Ø, 500 W, Fan-Cooled. No stand. UK power cord included. |
|
201099G |
| UP55G-600F-HD (Europe) | 55 mm Ø, 600 W, Special HD Absorber, Fan-Cooled. Includes stand. Europe power cord Included. |
|
201879C |
| UP55G-600F-HD (UK) | 55 mm Ø, 600 W, Special HD Absorber, Fan-Cooled. Includes stand. UK power cord Included. |
|
201879G |
| UP55G-600F-HD (US) | 55 mm Ø, 600 W, Special HD Absorber, Fan-Cooled. Includes stand. US power cord Included. |
|
201879B |
| UP55G-600F-HD-D0 (Europe) | 55 mm Ø, 600 W, Special HD Absorber, Fan-Cooled. No stand. Europe power cord Included. |
|
201878C |
| UP55G-600F-HD-D0 (UK) | 55 mm Ø, 600 W, Special HD Absorber, Fan-Cooled. No stand. UK power cord Included. |
|
201878G |
| UP55G-600F-HD-D0 (US) | 55 mm Ø, 600 W, Special HD Absorber, Fan-Cooled. No stand. US power cord Included. |
|
201878B |
