Power Detectors
Get accurate measurements with fast response times with our thermopile or pyroelectric power meters. Available with various absorbers, with the highest damage thresholds you can find in their category, our power meters cover a wide range going from the nanowatts to multi-kilowatts.
UP55N-H
- Modular Concept Increase the power capability of your detector: 4 different cooling modules
-
High Performance
- Fast Rise Time (2 sec)
- High Damage Threshold (45 kW/cm2)
- Compact DesignOnly 32 mm thick (40S model)
- Special High Power AbsorberHD absorber available for continuous readings up to 700 W
- Energy ModeMeasure single shot energy up to 200 J
- Smart Interface Containing all the calibration data
-
Compatible Monitors
MAESTRO
M-LINK
TUNER
UNO
S-LINK-2
P-LINK
| Name | Description | Image | P/N |
|---|---|---|---|
| STAND-S-443 | Stand, 4x 4in Base, 3in Cylinder, Steel Post, 8-32 & ¼-20 |
|
200234 |
| EXT-4 | Extension Cable (4 m) |
|
Call |
| EXT-15 | Extension Cable (15 m) |
|
Call |
| EXT-20 | Extension Cable (20 m) |
|
Call |
| EXT-25 | Extension Cable (25 m) |
|
Call |
| FOA-COVER50 | UP55 Fiber Adaptor Cover (50 mm threaded). Reduces aperture from 55 to 50 mm for Fiber adaptor or Fiber cylinder. |
|
101135 |
| FOA-50 | Fiber Adaptor 50 mm threaded (Choose 1 of 3 connectors available): | 200183 | |
| FOC-FC | FC Fiber Connector |
|
200867 |
| FOC-SC | SC Fiber Connector |
|
200182 |
| FOC-SMA | SMA Fiber Connector |
|
200868 |
| FOA-CYL50 | 50 mm Fiber Cylinder with 3 ports (Choose between 3 connectors available or plug) |
.jpg)
|
200052 |
| FOC-PLUG | Plug (to close port of fiber cylinder) |
|
100281 |
| FAN-12V-US | 12V Power Supply for fan-cooled detectors (US) |
.jpg)
|
200130B |
| FAN-12V-EU | 12V Power Supply for fan-cooled detectors (Europe) |
.jpg)
|
200130C |
| FAN-12V-UK | 12V Power Supply for fan-cooled detectors (UK) |
.jpg)
|
200130G |
| PEL-XXXX | Pelican Carrying Case (Many sizes available) |
|
Call |
| Category | Description | Version | Download | |
|---|---|---|---|---|
| Documentation | Specifications Sheet | 2012_V1.0 | 283 KB |  |
| Documentation | User Manual | 4.3 | 1 MB | |
| Documentation | Power Detectors Section | 2012_V1.0 | 2 MB | |
| Drawings | Outline Drawing | 8473-A | 303 KB | |
| Drawings | STEP | 8979 | 1 MB |  |
| Drawings | STEP | 8984 | 1 MB | |
| Documentation | White Papers | 2012_V1.0 | 101 KB | |
| Documentation | White Papers | 2012_V1.0 | 416 KB | |
| Documentation | Absorption Curves | 2012_V1.0 | 171 KB | |
| Drawings | Outline Drawing | 9096 | 140 KB | |
| Drawings | STEP | 9097 | 1 MB | |
| Drawings | STEP | 9099 | 1 MB | |
| Name | Description | Image | P/N |
|---|---|---|---|

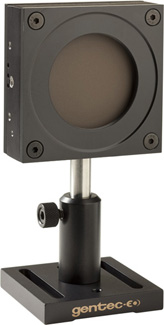

| UP55N-40S-H9 | 55 mm Ø, 40 W, Standalone. Includes stand. |
|
200218 |
| UP55N-40S-H9-D0 | 55 mm Ø, 40 W, Standalone. No stand. |
|
200215 |

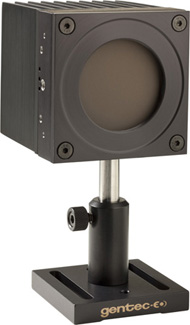

| UP55N-100H-H9 | 55 mm Ø, 100 W, Heatsink. Includes stand. |
|
200222 |
| UP55N-100H-H9-D0 | 55 mm Ø, 100 W, Heatsink. No stand. |
|
200219 |

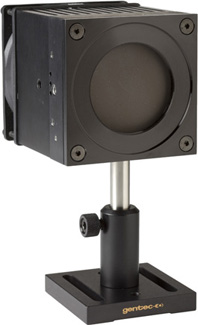

| UP55N-300F-H12 (US) | 55 mm Ø, 300 W, Fan-Cooled. Includes stand. US power cord included. |
|
201160B |
| UP55N-300F-H12 (Europe) | 55 mm Ø, 300 W, Fan-Cooled. Includes stand. Europe power cord included. |
|
201160C |
| UP55N-300F-H12 (UK) | 55 mm Ø, 300 W, Fan-Cooled. Includes stand. UK power cord included. |
|
201160G |
| UP55N-300F-H12-D0 (US) | 55 mm Ø, 300 W, Fan-Cooled. No stand. US power cord included. |
|
201157B |
| UP55N-300F-H12-D0 (Europe) | 55 mm Ø, 300 W, Fan-Cooled. No stand. Europe power cord included. |
|
201157C |
| UP55N-300F-H12-D0 (UK) | 55 mm Ø, 300 W, Fan-Cooled. No stand. UK power cord included. |
|
201157G |
| UP55M-500W-H12 | 55 mm Ø, 500 W, Water-Cooled. Includes stand. |
|
201883 |
| UP55M-500W-H12-D0 | 55 mm Ø, 500 W, Water-Cooled. No stand. |
|
201882 |
| UP55M-700W-HD | 55 mm Ø, 700 W, Water-Cooled, Special High Power Absorber. Includes stand. |
|
201926 |
| UP55M-700W-HD-D0 | 55 mm Ø, 700 W, Water-Cooled, Special High Power Absorber. No stand. |
|
201908 |
| UP55N-300DI-H12 | 55 mm Ø, De-Ionized Water-Cooling Module, 300 W. Includes stand. | 201014 | |
| UP55N-300DI-H12-D0 | 55 mm Ø, De-Ionized Water-Cooling Module, 300 W. No stand. | 201015 |
