Power Detectors
Get accurate measurements with fast response times with our thermopile or pyroelectric power meters. Available with various absorbers, with the highest damage thresholds you can find in their category, our power meters cover a wide range going from the nanowatts to multi-kilowatts.
UP55N-VR
- Modular Concept Increase the power capability of your detector: 4 different cooling modules
-
High Peak Power Volume Absorber
- Perfect for high density beams
- Average power density of 700 W/cm2 prevents degradation caused by repetitive pulses
- Large Aperture 55 mm aperture to accomodate the largest beams
- High Average Power Up to 200 W of continuous power with the watercooled unit
- Energy Mode Measure single shot energy up to 200 J
- Smart InterfaceContaining all the calibration data
-
Compatible Monitors
MAESTRO
M-LINK
TUNER
UNO
S-LINK-2
P-LINK
| Name | Description | Image | P/N |
|---|---|---|---|
| STAND-S-233 | Stand, 2 x 3in Base, 3in Cylinder, Steel Post, 8-32 & ¼-20 |
|
200160 |
| EXT-4 | Extension Cable (4 m) |
|
Call |
| EXT-15 | Extension Cable (15 m) |
|
Call |
| EXT-20 | Extension Cable (20 m) |
|
Call |
| EXT-25 | Extension Cable (25 m) |
|
Call |
| PEL-XXXX | Pelican Carrying Case (Many sizes available) |
|
Call |
| Category | Description | Version | Download | |
|---|---|---|---|---|
| Documentation | Specifications Sheet | 2012_V1.0 | 300 KB |  |
| Documentation | User Manual | 4.3 | 1 MB | |
| Documentation | Power Detectors Section | 2012_V1.0 | 2 MB | |
| Documentation | White Papers | 2012_V1.0 | 101 KB | |
| Documentation | White Papers | 2012_V1.0 | 416 KB | |
| Name | Description | Image | P/N |
|---|---|---|---|

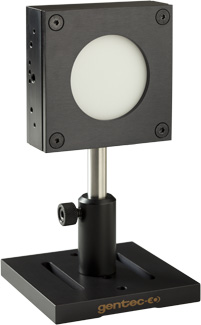

| UP55N-50S-VR | 55 mm Ø, 50 W, Standalone, Volume Absorber. Includes stand. |
|
201296 |
| UP55N-50S-VR-D0 | 55 mm Ø, 50 W, Standalone, Volume Absorber. No stand. |
|
201295 |

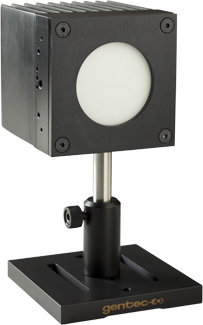

| UP55N-100H-VR | 55 mm Ø, 100 W, Heatsink, Volume Absorber. Includes stand. |
|
201934 |
| UP55N-100H-VR-D0 | 55 mm Ø, 100 W, Heatsink, Volume Absorber. No stand. |
|
201935 |

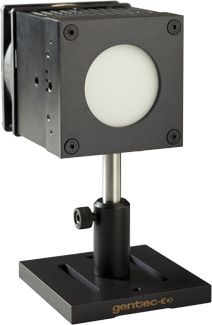

| UP55N-150F-VR (US) | 55 mm Ø, 150 W, Fan-Cooled, Volume Absorber. Includes stand. US power cord included. |
|
201856B |
| UP55N-150F-VR (Europe) | 55 mm Ø, 150 W, Fan-Cooled, Volume Absorber. Includes stand. Europe power cord included. |
|
201856C |
| UP55N-150F-VR (UK) | 55 mm Ø, 150 W, Fan-Cooled, Volume Absorber. Includes stand. UK power cord included. |
|
201856G |
| UP55N-150F-VR-D0 (US) | 55 mm Ø, 150 W, Fan-Cooled, Volume Absorber. No stand. US power cord included. |
|
201854B |
| UP55N-150F-VR-D0 (Europe) | 55 mm Ø, 150 W, Fan-Cooled, Volume Absorber. No stand. Europe power cord included. |
|
201854C |
| UP55N-150F-VR-D0 (UK) | 55 mm Ø, 150 W, Fan-Cooled, Volume Absorber. No stand. UK power cord included. |
|
201854G |

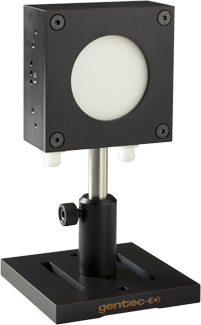

| UP55M-200W-VR | 55 mm Ø, 200 W, Water-Cooled, Volume Absorber. Includes stand. |
|
201292 |
| UP55M-200W-VR-D0 | 55 mm Ø, 200 W, Water-Cooled, Volume Absorber. No stand. |
|
201291 |
