Power Detectors
Get accurate measurements with fast response times with our thermopile or pyroelectric power meters. Available with various absorbers, with the highest damage thresholds you can find in their category, our power meters cover a wide range going from the nanowatts to multi-kilowatts.
XLP12
- Low Power Thermopile Noise level of a photo detector with the large bandwidth and high power capacity of a thermal device
- Minimal Thermal Drift Only 6 µW/°C (with the IR filter)
- High Sensitivity 200 mV/W (without the IR filter)
- IR Filter (XLP12F Model) Removes unwanted IR interference
- Isolation Tube Eliminates power fluctuations created by air turbulence
-
Compatible Monitors
MAESTRO
TUNER
UNO
S-LINK-2
P-LINK
| Description | Image | P/N |
|---|---|---|
| STAND-S-233 --- Stand, 2 x 3in Base, 3in Cylinder, Steel Post, 8-32 & ¼-20 |
|
200160 |
| EXT-4 --- Extension Cable (4 m) |
|
Call |
| EXT-15 --- Extension Cable (15 m) |
|
Call |
| EXT-20 --- Extension Cable (20 m) |
|
Call |
| EXT-25 --- Extension Cable (25 m) |
|
Call |
| IR-FILTER --- IR Filter (Mounted) |
|
201076 |
| FOA-FULL-FC --- FC Fiber Optic Adaptor |
|
100905 |
| FOA-FULL-SMA --- SM1SMA Fiber Optic Connector |
|
100906 |
| FOA-FULL-ST --- SM1ST Fiber Optic Connector |
|
100907 |
| FOA-FULL-SC --- SC Fiber Optic Adaptor | 201237 | |
| PEL-XXXX --- Pelican Carrying Case (Many sizes available) |
|
Call |
| Category | Description | Version | Download | |
|---|---|---|---|---|
| Documentation | Specifications Sheet | 2012_V1.0 | 210 KB |  |
| Documentation | User Manual | 3.7 | 1 MB | |
| Documentation | Power Detectors Section | 2012_V1.0 | 2 MB | |
| Drawings | Outline Drawing | 8698-D | 106 KB | |
| Name | Description | Image | P/N |
|---|---|---|---|
| XLP12-3S-H2 | 12 mm Ø, 3 W with 1 µW Noise, Standalone. Includes stand. |
|
201035 |
| XLP12-3S-H2-D0 | 12 mm Ø, 3 W with 1 µW Noise, Standalone. No stand. |
|
201032 |

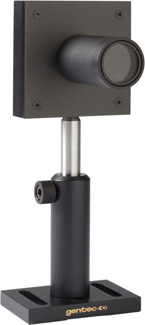

| XLPF12-3S-H2 | 12 mm Ø, 3 W with 1 µW Noise, Standalone, IR Filter. Includes stand. |
|
201078 |
| XLPF12-3S-H2-D0 | 12 mm Ø, 3 W with 1 µW Noise, Standalone, IR Filter. No stand. |
|
201077 |
