THz Detectors
Our sensors are pyroelectric-based and can thus be used very easily, and at room temperature. You can choose either a standalone head with on-board electronics or go with our T-Rad meter and a separate sensor. We also have small discrete terahertz detectors in TO5/TO8 packages.
.jpg)

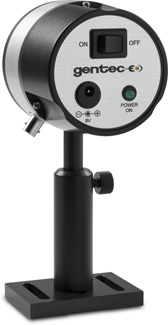

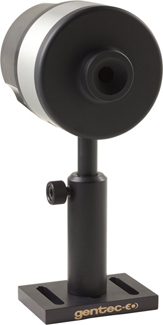

THZ-I-BNC
- Measure Sources from 0.1 to 30 THz Broadband, room temperature operation, easier to use and less expensive than a Golay cell
- Wide Dynamic Range from nW to mW With state of the art pyroelectric sensors, measure down to 100 nW
- Integrated Analog Module Plug the head directly to your oscilloscope
- Battery or AC Powered Includes 9V Battery and AC Power Eliminator
- Calibrated Devices All THz detectors are calibrated in the 0.25 to 15 µm (20 THz) region.
| Name | Description | Image | P/N |
|---|---|---|---|
| PEW | Interchangeable Polyethelene Window (0.3-20 THz) |
|
201559 |
| TPXW | Interchangeable TPX (Rexolite) Window (0.2 – 5 THz) |
|
201753 |
| SCQW | Interchangeable Single Crystal Quartz Window |
|
201568 |
| SW | Interchangeable Sapphire Window (0.1-7 µm) |
|
201745 |
| SDC-5000 | Digital Optical Chopper |
|
102855 |
| PEL-XXXX | Pelican Carrying Case (Many sizes available) |
|
Call |
| STAND-D-233 | Stand with 2 x 3in Base, 3in Cylinder, Delrin Post, ¼-20 & 8-32 |
|
200428 |
| Category | Description | Version | Download | |
|---|---|---|---|---|
| Documentation | Specifications Sheet | 2012_V1.0 | 240 KB |  |
| Documentation | THz Detectors Section | 2012_V1.0 | 958 KB | |
| Documentation | Absorption Curves | 2012_V1.0 | 56 KB | |
| Documentation | Application Note | 121D-201924 | 401 KB | |
| Name | Description | Image | P/N |
|---|---|---|---|
| THZ2I-BL-BNC | 2 mm Ø, Integrated Analog Module, Pyroelectric Sensor with Organic Black Coating. Calibrated for THz Detection. No stand. |
|
201701 |
| THZ5I-MT-BNC | 5 mm Ø, Integrated Analog Module, Pyroelectric Sensor with Chromium Coating. Calibrated for THz Detection. No stand. |
|
201702 |
