UPF10K-2S-H5-L
3D model (STEP)
- 9682A
- 英文
UPF10K-2S-H5-L-D0
Thermal detector for laser power measurement up to 2 W.
-
- 10 mm Ø
- 12 mm Ø
- 16 - 19 mm Ø
- 25 mm Ø
- 50 - 55 mm Ø
-
- 传送（高达 2 W）
- 传送 - 小巧外壳 （高达 2 W）
- 大散热片
- 散热片
- 水 - 大外壳
- 水
- 风扇
-
- H - 宽带
- F - 红外滤光片
- HD - 宽带、高功率
- QED - 高能量密度
- VP - 超短脉冲
- VR - 高能量密度
- W - 超高功率密度
-
- Standard
- INTEGRA (USB)
- INTEGRA (RS-232)
- INTEGRA（带有外部触发器的 USB）
- BLU（无线）
可追溯校准
适用于
Product family key features
Low Power Thermopile
Noise level of a photo detector with the large bandwidth and high power capacity of a thermal device
IR Filter (UPF10 Models)
Removes unwanted IR interference
High Performance
- Fast rise time (1.1 sec)
- High damage threshold (36 kW/cm2)
Compact Design
Only 13 mm thick (UP10P model)
Energy Mode
Measure single shot energy up to 3 J
Smart Interface
Containing all the calibration data
Compatible stand
Compatible displays & PC interfaces
-
MIRO ALTITUDE
Touchscreen display device for power & energy measurement. Single-channel.
-
MAESTRO
Touchscreen display device for power & energy measurement. Single-channel, multiple outputs (USB, Ethernet, analog).
-
U-LINK (USB)
PC interface for power & energy measurement. Single-channel, USB output.
-
U-LINK (RS-232)
PC interface for power & energy measurement. Single-channel, RS-232 output.
-
INTEGRA
Embedded PC interface for power & energy measurement. Can only be purchased as a detector output option.
-
TUNER
Display device with tuning needle for power measurement. Single-channel.
-
P-LINK (USB)
PC interface for power measurement. Single-channel, USB output.
-
P-LINK (RS-232)
PC interface for power measurement. Single-channel, RS-232 output.
-
S-LINK-1 (Ethernet)
PC interface for power & energy measurement. Single-channel, USB & Ethernet output.
-
S-LINK-2 (Ethernet)
PC interface for power & energy measurement. Dual-channel, USB & Ethernet output.
-
M-LINK
PC interface for power & energy measurement. Single-channel, USB output.
-
S-LINK-1
PC interface for power & energy measurement. Single-channel, USB output.
-
S-LINK-2
PC interface for power & energy measurement. Dual-channel, USB output.
-
P-LINK-4 (USB)
PC interface for power measurement. Four channels.
包括
-
Calibration
Calibration certificate
-
PWC
Personal wavelength correctionTM Certificate
-
COVER
Protective cover for optical surfaces
Measurement capabilities
-
Maximum average power (continuous)
2 W -
Noise equivalent power1
30 μW -
Spectral range2
0.28 - 2.1 μm -
Typical rise time3
1.1 s -
Power calibration uncertainty4
±2.5 % -
Repeatability
±0.5 % -
- 1. Nominal value, actual value depends on electrical noise in the measurement system.
- 2. For the calibrated spectral range, see the user manual.
- 3. With anticipation.
- 4. Including linearity with power.
Measurement capabilities (Energy mode)
-
Maximum measurable energy1
3 J -
Noise equivalent energy2
5 mJ -
Minimum repetition period
2 s -
Maximum pulse width
63 ms -
Energy calibration uncertainty3
±5 % -
- 1. For 360 μs pulses. Higher pulse energy possible for long pulses (ms), less for short pulses (ns).
- 2. Nominal value, actual value depends on electrical noise in the measurement system.
- 3. When single-shot energy calibration is purchased
Damage thresholds
-
Maximum average power density1
36 kW/cm² -
Maximum energy density2
1 J/cm² -
- 1. At 1064 nm, 10 W CW. May vary with wavelength and average power.
- 2. At 1064 nm, 7 ns, 10 Hz. May vary with wavelength and pulse width.
Physical characteristics
-
Cooling
Convection -
Aperture diameter
10 mm -
Absorber
H5 -
Dimensions
50H x 50W x 30D mm -
Weight
0.13 kg
-
STAND-S-233
Stand, 2 x 3in base, 3in cylinder, steel post, 8-32 & ¼-20.
FOA-FULL-FC
Fiber optic adaptor FC/PC with SM1 external thread. For: XLP12, UP10, IS12, UP25, PH, PE, UM, QE8, THZ9D, BEAMAGE-4M. Al...
FOA-FULL-SMA
Fiber optic adaptor SMA with SM1 external thread. For: XLP12, UP10, IS12, UP25, PH, PE, UM, QE8, THZ9D, BEAMAGE-4M. Also...
FOA-FULL-ST
Fiber optic adaptor ST with SM1 external thread. For: XLP12, UP10, IS12, UP25, PH, PE, UM, QE8, THZ9D, BEAMAGE-4M. Also ...
XLP12-TUBE
Isolation tube for XLP12 series. Can be used with any detector having a SM1-threaded aperture. Includes XLP12 series, UP...
EXT-#
Extension cable. Various cable lengths are available, up to 40 m.
FOA-FULL-FCA
Fiber optic adaptor FC/APC with SM1 external thread. For: XLP12, UP10, IS12, UP25, PH, PE, UM, QE8, THZ9D, BEAMAGE-4M. A...
NAN-915
Hardshell, waterproof carrying case with padded dividers. Internal size 13 L (351 mm x 236 mm x 157 mm).
-
How calibration works
Technical note
- 2025
- 英文
How thermopile power detectors work
Technical note
- 英文
Linearity with power of Gentec-EO's thermal laser power detectors
Technical note
- 202206A
- 英文
Measuring high powers with low power detectors
Technical note
- 202188
- 英文
Measuring laser power with a thermopile detector: The basics!
Technical note
- 202175
- 英文
Recalibration options when using an extension cable
Technical note
- 202176
- 英文
Understanding the spectral characteristics of your detectors
Technical note
- 202202
- 英文
Power detectors - overview
Comparison table
- 2025
- 英文
Understanding your calibration certificate
Technical note
- 202184B
- 英文
Calibration: For measurements you can count on
Technical note
- 英文
Same laser, same detector: A measure of repeatability
Technical note
- 2026
- 英文
-
PC-Gentec-EO
Software
Software for BLU, HP, INTEGRA, MAESTRO, U-LINK and P-LINK series. Don't forget to download and install the USB Drivers.
- 2.01.26
- 英文
Integra
LabVIEW VI examples
LabVIEW VI examples for 9.0+
- 1.00.04
- 英文
USB drivers installer
USB drivers
Use this file to install USB drivers for these products: MAESTRO, INTEGRA, U-LINK, P-LINK, M-LINK, S-LINK, BLU, PRONTO, HP
- 2.00.04
- 英文
Integra
Python examples
Python examples for INTEGRA.
- 1.00.00
- 英文
Serial command examples in C for HP and INTEGRA
Code example
- 1.00.00
- 英文
适用于大多数应用的多功能吸收器
我们的 H 型吸收器具有宽带和光谱平坦的光谱响应，因此该功率检测器是一种多功能解决方案，可满足大多数激光功率测量需求。我们专有的制造方法还使这种吸收器在平均功率密度和能量密度方面具有良好的损坏阈值。它的吸收能力很强，因此产生的背部反射比例相对较低。
可为客户提供以下优势：
- 适用于测量各种激光
- 损坏设备的风险较低
- 允许快速上升时间

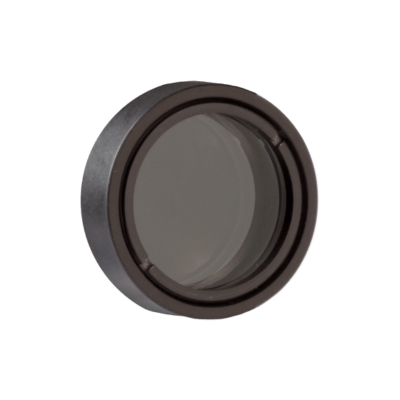

测量不受红外干扰
我们在吸收器前添加了一个滤波器，以消除不必要的红外干扰，并消除周围环境中空气湍流造成的功率波动。
可为客户提供以下优势：
- 降低对周围环境的敏感度
INTEGRA（USB 或 RS-232）输出选择
当您选择 INTEGRA 输出选项时，您将获得集检测器和仪表于一体的便捷的一体化测量仪器产品。将检测器插入电脑，安装我们的免费软件，即可开始测量。
为何如此选择？
- 最具成本效益的解决方案
- 与其他解决方案具有相同的测量性能
- 接口功能和特性不打折扣
- 适用于 OEM 应用和现场维修的紧凑型解决方案
- 多功能仪器可节省重新校准的费用
Android compatibility with optional INTEGRA output for the UP series
The UP series is compatible with your Android device when you choose the INTEGRA (USB) output. You only need a USB-A to USB-C converter such as USBA-C and our free BLU mobile app available in the Google Play Store.
Why use this solution?
- Most portable solution
- No need to carry a laptop
深入了解您的激光行为
不再为电子表格烦恼——让我们的数据查看器在浏览器中将原始数字转化为清晰洞察。只需从 PC-Gentec-EO 导入您的数据日志文件，即可立即通过清晰的图表、详细的参数和有用的统计数据来可视化您的激光测量。
为什么要使用它？
- 放大任何数据片段以进行深入分析
- 几秒内访问详细的测量参数和趋势
- 获取可直接用于报告或故障排查的可视化洞察
- 同时打开并比较多个日志文件
利用 XNR AnticipationTM 加快测量速度
利用 XNR AnticipationTM，测量激光功率的速度可提高 10 倍（取决于型号）。我们的专利算法会查看信号增减的速度，并将其与校准数据相结合，从而预测结果。因此，计算和显示测量结果的速度要高于检测器的自然响应速度。
这为何很重要？
- 每次测量可节省几秒到几十秒的时间
- 运行中断时间缩短
- 激光输出诊断加快
- 生产率提升
- 测量精度不打折扣
包括 NIST 可追溯校准
可追溯校准可将激光输出测量的读数追溯到美国国家标准与技术研究院（NIST）确定的已知国际测量标准。这确保了仪器测量的可靠性和准确性。
其优势包括：
- 对组织内外其他仪器的测量结果进行有效比较，并对不同时间的测量结果进行比较
- 符合法规或行业标准
- 避免在运行中出现代价高昂的测量错误
- 增强客户对激光系统的信心
- 确保实验室实验的有效性
- 利用我们提供的校准证书，轻松证明测量的准确性
