제품군 주요 특징
Up to 200 kHz Pulse-to-Pulse
Measure every pulse, with no sampling, at high rep rates, up to 200 kHz
Capture and Store up to 4 million Pulses
Store 40 seconds of data at 100 kHz
Track Missing Pulses and Pulses Below Threshold
Know how many pulses were missed or that didn’t make the energy threshold with this unique pulse feature
Several Heads to Choose From
Silicon, InGaAs and pyroelectric heads for a broad wavelength and energy range
Analog Module Available
Full-Speed USB 2.0 Connection
Ensures high data rate transfer and fast operation
User-Friendly Software with Many Diagnostic Features
- Live mode, strip chart, histogram and statistics displays
- FFT display of pulse energy data for temporal diagnostics
- Life test mode to automate laser testing
- 펄스 에너지(M6 시리즈에만 해당)
컨트롤러 및 GUI 사양
디지털 디스플레이 사이즈컴퓨터 화면
아날로그 출력0-3 볼트, BNC
파워 미터 사양
에너지 미터 사양
에너지 범위pJ to mJ
디지털 해상도현재 눈금/2000
모니터 정확성±1 %
소프트웨어 트리거 수준2~20%, 1% 해상도
반복률200 000 Hz
Software for Mach 6 series.
LabVIEW VI examples
This is a set of LabVIEW VI’s that allow for the use of all the basic MACH 6 functions.
SIMPLE MACH 6
LabVIEW VI examples
LabVIEW VI examples for basic MACH 6 operation.
USB 드라이버 설치 프로그램
이 파일을 사용하여 MAESTRO, INTEGRA, U-LINK, P-LINK, M-LINK, S-LINK, BLU, PRONTO, HP, MACH6, BEAMAGE 제품용 USB 드라이버를 설치할 수 있습니다.
MACH 6 - ULTRAFAST JOULEMETER

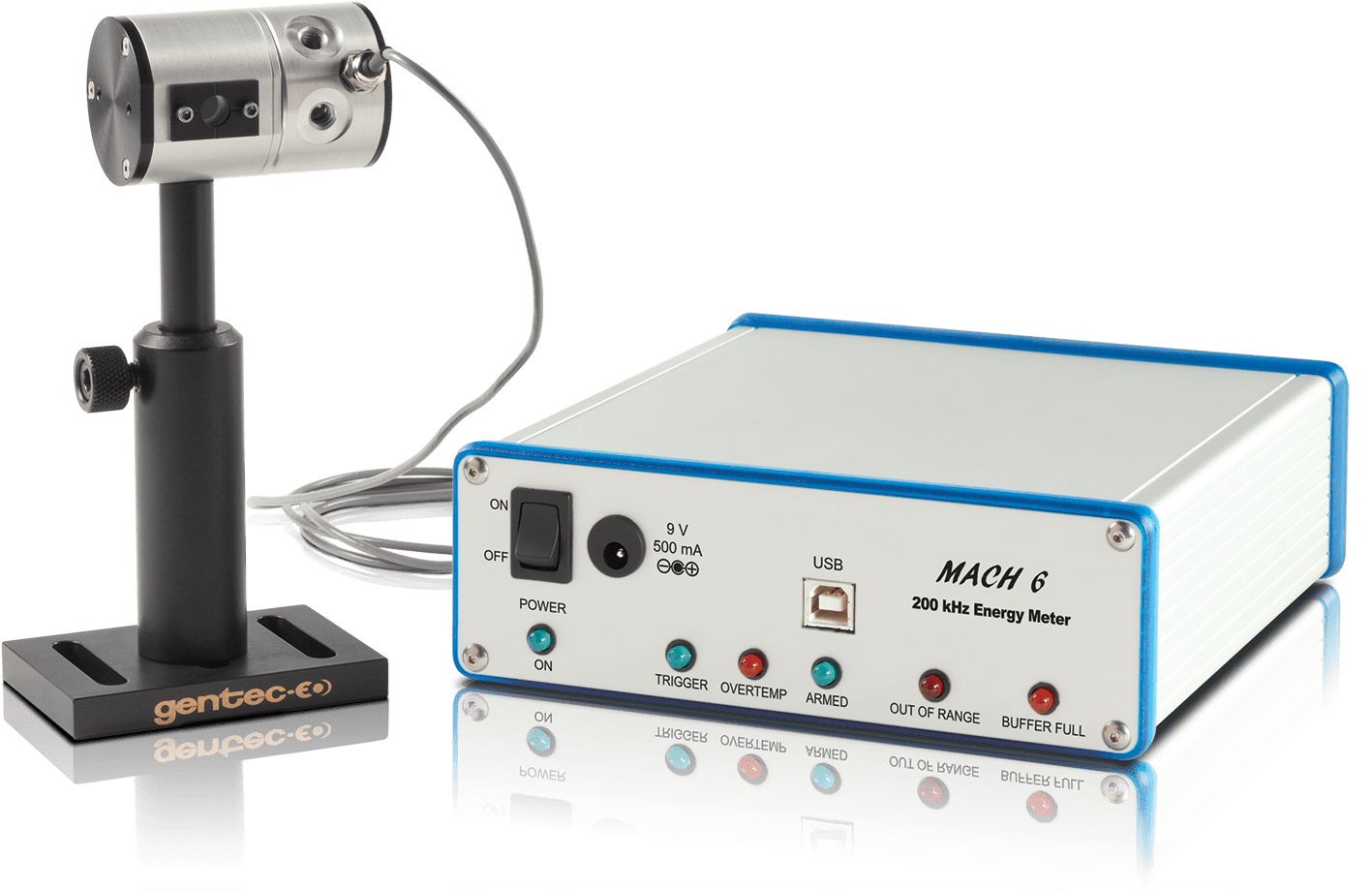

Measure every pulse at up to 200 kHz with MACH 6. Measure with 12-bit digital accuracy and capture up to 4 million pulses in real time. Our MACH 6 joulemeter is the only instrument in the world that performs at this speed, and with this precision. It is designed to support our full complement of fast energy probes that include silicon, InGaAs and pyroelectric detectors. Measure from pJ to mJ and from 0.35 to 2.5 µm. Using the M6-SI detector and the M5-UC-QED accessory, you can make relative measurements at 266 nm.
INSTRUMENT CONTROL SCREEN

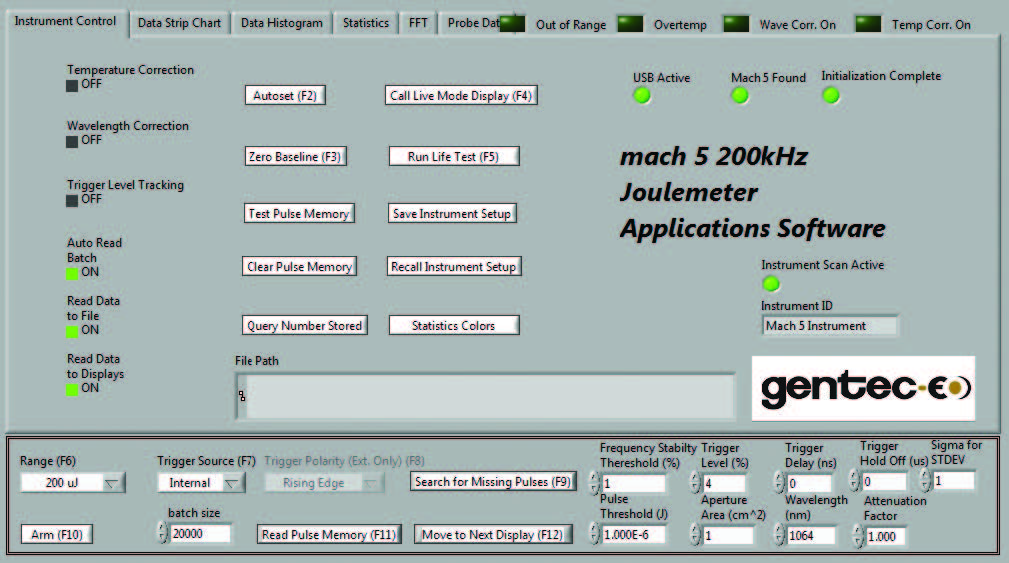

Our powerful LabView application software includes many unique control and diagnostic features. The instrument control screen, shown on the left, is used to set up the operation of the MACH 6, including range, trigger, wavelength, and more. In addition, it is used to set a pulse batch size and to arm the instrument, which starts the data collection. It also gives you access to features like "autoset", "call live mode", "run life test", "save instrument setup" and the like. These features can be accessed by clicking directly on the feature or pushing the associated function key.
LIVE MODE DISPLAY

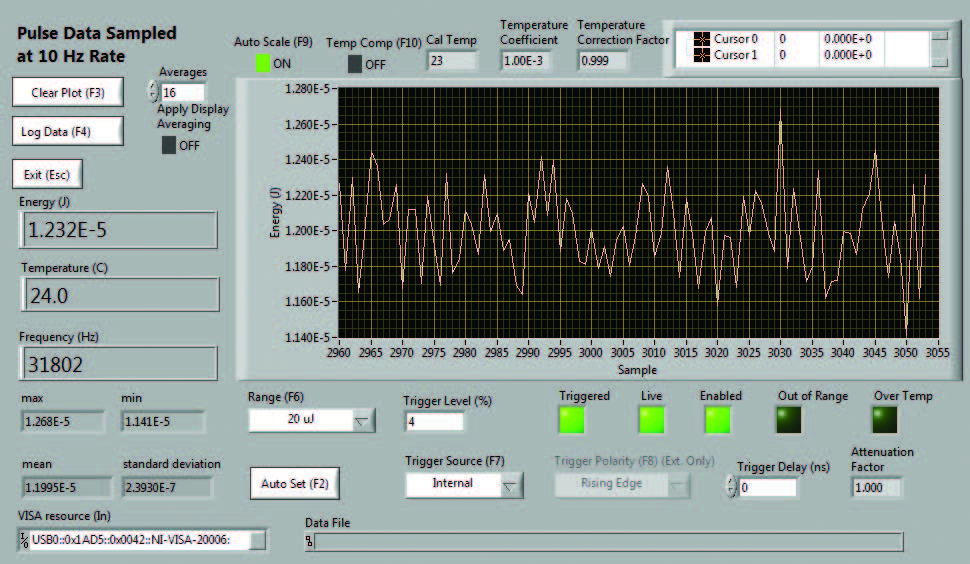

The live mode can be accessed from the instrument control screen, or by simply pressing the "F4" function key on your PC. This mode of operation is intended to act like your typical slower Digital joulemeter, as it samples the laser pulses at a 10 Hz rate. It provides you with an energy strip chart, live energy reading, statistics and repetition rate. It is a very useful mode when setting up the Mach 6 with your laser. You can select "auto set", where the instrument runs through the ranges and trigger levels until it finds the correct range, or set them manually. When setup is complete, you will exit this screen and return to the "control" screen where you will select a batch size, arm the instrument and start taking pulse energy data.

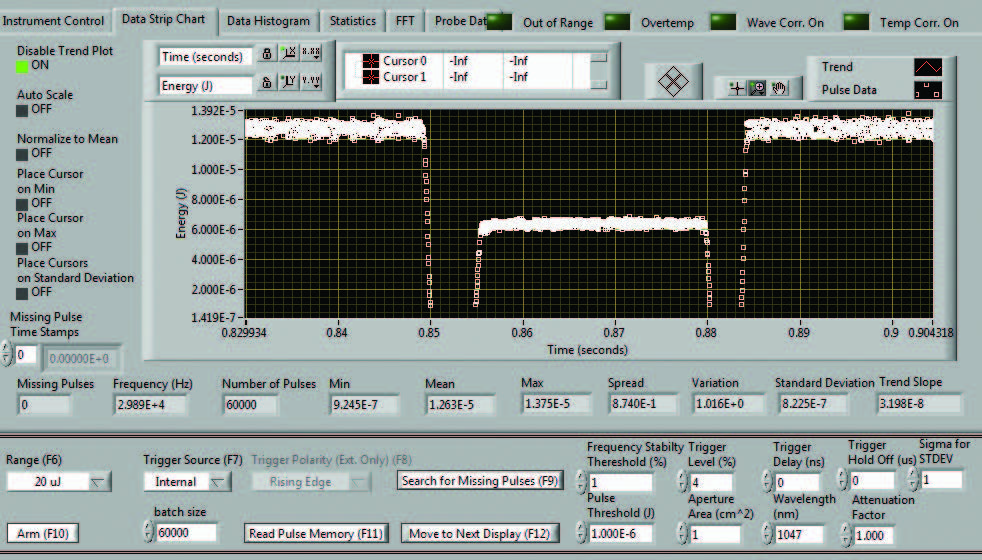

The strip chart display provides a quick graphical look at the pulse data batch just collected. The data can be displayed in full scale or in auto scale mode. You can also zoom-in on a portion of the data, like shown in the screen on the left. An ND0.3 filter has been dropped through the beam and you can see the effects on the pulse data collected. You can fit trend and min/max lines to the data. Just below the chart, you will find a complete set of statistics for the batch. At the top of this screen you will see tabs that will take you to the histogram, statistics, and FFT (Fast Fourier Transform) displays.

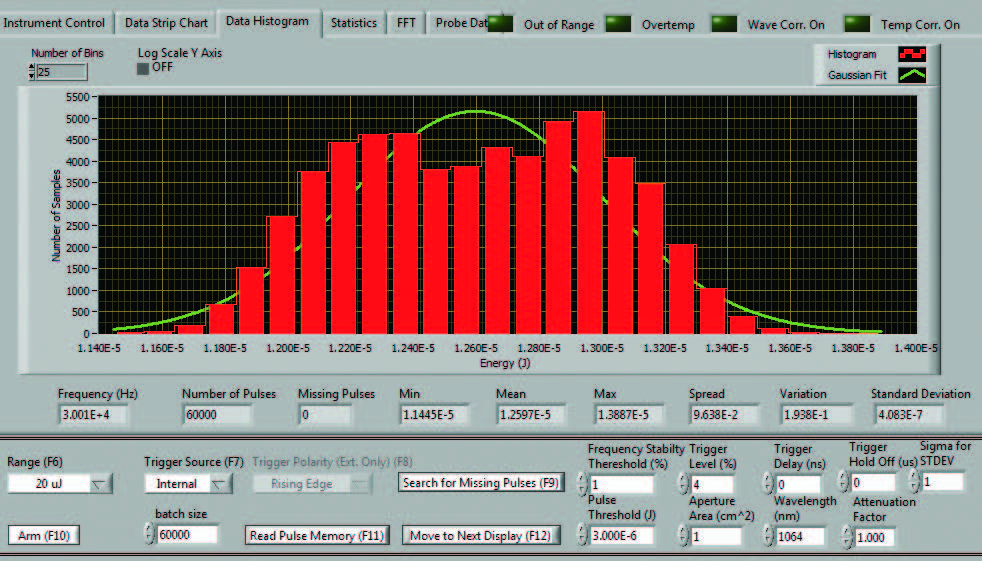

Interested in viewing the statistical distribution of the pulse energy data set? The Histogram screen does this for you and fits a "best Gaussian curve" to the data. It displays complete statistical calculations along the bottom of the graph, along with pulse frequency. Just below the statistics, you will find instrument controls, like range and trigger. You are also given the ability to adjust trigger delay and hold off as needed.

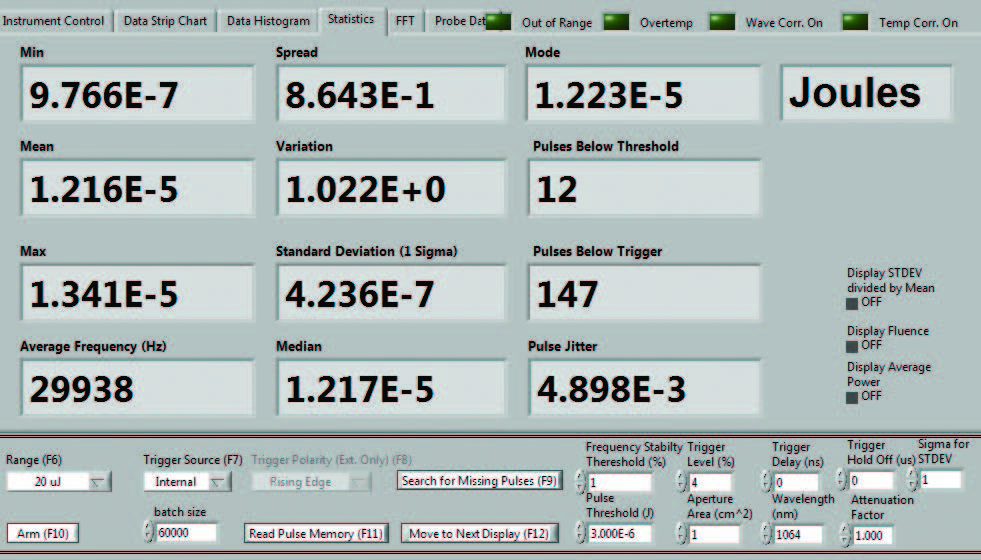

The statistics display offers a very complete set of useful energy readings and calculated statistics. These include: minimum, maximum, average (mean), standard deviation, spread and variation. Some other very handy features include: windows displaying, Average frequency, pulse jitter, pulses below trigger and pulses below threshold (a level set by you). In the screen on the left, you can see that there were 12 pulses below an energy threshold of 3 µW, and 147 missing pulses (or pulses below trigger).
LIFE TEST MODE

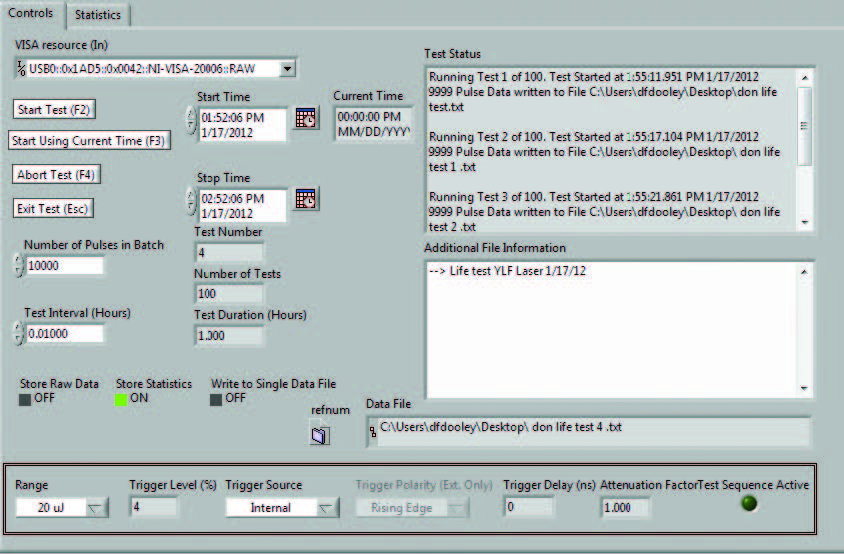

Would you like to run a life test on your high repetition rate pulsed laser? How about a periodic test vs an environmental change like temperature? We have included a great feature to accomplish this. In the life test screen, we give you the ability to select the statistics you want, a start time and date, a stop time and date, the number of pulses and a test interval. You simply identify a file, a place to put the data, and then click on start and walk away! When you come back, you have a data set that tracked the performance of your laser over time, temperature, shock, vibration or anything you chose.
NIST-TRACEABLE CALIBRATION INCLUDED
- Make valid comparisons of measurements taken by other instruments inside and outside your organization and over time
- Comply with regulations or conform to industry standards
- Avoid costly measurement mistakes in your operations
- Improve customer confidence in your laser systems
- Ensure laboratory experiment validity
- Demonstrate measurement accuracy easily with the calibration certificate we provide
