PE10B-Si-D0
P/N 202019Photodiode detector for laser energy measurement up to 81 nJ.
-
- 3 mm Ø
- 5 mm Ø
- 10 mm Ø
-
- UV-Silicon
- Germanium
- InGaAs
-
- None
-
- Standard (DB15)
- INTEGRA (USB)
- INTEGRA (RS-232)
- INTEGRA (USB with external trigger)
- BLU (wireless)
Key features
Very low noise level
Take measurements with a noise level as low as 8 fJ with the M-LINK, MAESTRO and S-LINK monitors.
3 sensors available
- PE-B-SI family: 3 and 10 mm Ø silicon sensors for 0.21 to 1.08 µm
- PE5B-GE: 5 mm Ø, germanium sensor for 0.8 to 1.65 µm
- PE3B-IN: 3 mm Ø, InGaAs sensor for 0.9 to 1.7 µm
Smart interface
Containing all the calibration data
Compatible stand
Compatible displays & PC interfaces
-
MAESTRO
Touchscreen display device for power & energy measurement. Single-channel, multiple outputs (USB, Ethernet, Analog).
-
U-LINK (USB)
PC interface for power & energy measurement. Single-channel, USB output.
-
U-LINK (RS-232)
PC interface for power & energy measurement. Single-channel, USB & RS-232 output.
-
INTEGRA
Embedded PC interface for power & energy measurement. Can only be purchased as a detector output option.
-
S-LINK-1 (Ethernet)
PC interface for power & energy measurement. Single-channel, USB & Ethernet output.
-
S-LINK-2 (Ethernet)
PC interface for power & energy measurement. Dual-channel, USB & Ethernet output.
-
M-LINK
PC interface for power & energy measurement. Single-channel, USB output.
-
S-LINK-1
PC interface for power & energy measurement. Single-channel, USB output.
-
S-LINK-2
PC interface for power & energy measurement. Dual-channel, USB output.
-
APM
Analog power module, to interface -B heads with oscilloscopes and lock-in amplifiers.
Measurement capabilities
-
Spectral range1
210 - 1080 nm -
Typical rise time
30 µs -
Maximum repetition frequency
1000 Hz -
Typical energy sensitivity
20 mV/J -
Maximum measurable energy2
81 nJ -
Noise equivalent energy3
1.5 pJ -
Maximum pulse width
10 μs -
Energy calibration uncertainty
±18 % (210 - 229 nm)
±8.0 % (230 - 254 nm)
±6.5 % (255 - 399 nm)
±2.5 % (400 - 899 nm)
±4.0 % (900 - 1009 nm)
±7.5 % (1010 - 1080 nm) -
- 1. This detector is NIST-traceable at the calibration wavelength of 634 nm. Typical values are used at other wavelengths.

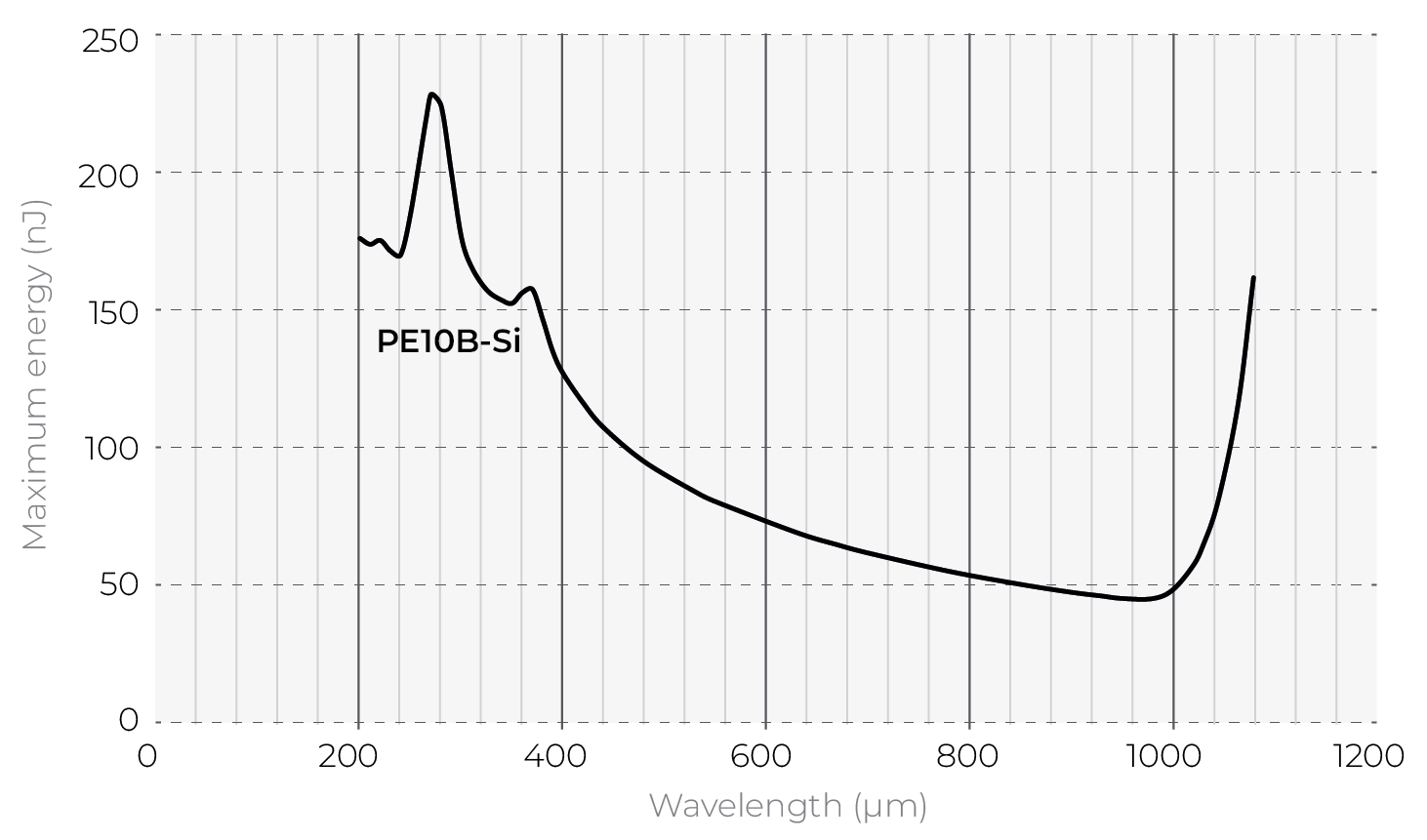

- 2. At 634 nm. See curves for maximum power at other wavelengths.
- 3. Nominal value. Actual value depends on environmental electromagnetic interference and wavelength.
Damage thresholds
-
Maximum average power density
65 MW/cm² -
Maximum energy density
5 µJ/cm² -
Maximum power
230 μW
Physical characteristics
-
Aperture diameter
10 mm -
Absorber
SiUV -
Dimensions
38.1Ø x 27.4D mm -
Weight
0.09 kg -
Distance to sensor face
13.7 mm
-
Photodetectors
Absorption curves
Absorption curves for photodetectors
- 2020_V1.0
- English
INTEGRA module
3D model (STEP)
- 9875
- English
QE-B series, UM-B series, PH series, PE-B series
2D CAD file (PDF)
- 9254C
- English
INTEGRA module for PH, PE and IS series
2D CAD file (PDF)
- 9588A
- English
-
STAND-D-233
Stand with 2 x 3in base, 3in cylinder, delrin post, ¼-20 & 8-32.
FOA-FULL-FC
Fiber optic adaptor FC with full cover. For: XLP12, -B heads (except THZ), PH and STEP.
FOA-FULL-SMA
Fiber optic adaptor SMA with full cover. For: XLP12, -B heads (except THZ), PH and STEP.
FOA-FULL-ST
Fiber optic adaptor ST with full cover. For: XLP12, -B heads (except THZ), PH and STEP.
PEL-#
Pelican carrying case. Various sizes available. Contact us to order.
-
INTEGRA
User Manual
Embedded monitor for power and energy detectors
- 3.3
- English
PC-Gentec-EO
User Manual
Universal PC application software.
- 7.2
- English
PH and PE
User Manual
Photodetectors
- 3.2
- English
Calibration Uncertainty of Photodetectors
Technical note
- English
Energy measurement limits using joulemeter probes
Technical note
- English
How calibration works
Technical note
- English
Recalibration options when using an extension cable
Technical note
- English
Understanding the spectral characteristics of your detectors
Technical note
- English
-
PC-Gentec-EO
Software
Software for BLU, HP, INTEGRA, MAESTRO, U-LINK and P-LINK series. Don't forget to download and install the USB Drivers.
- 2.01.12
- English
INTEGRA (V2 RS232 - Photodiode)
Firmware
Firmware for Integra V2 RS232 photodiode series only.
- 2.00.02
- English
INTEGRA (V2 USB - Photodiode)
Firmware
Firmware for Integra V2 USB photodiode series only.
- 2.00.02
- English
Integra
LabVIEW VI examples
LabVIEW VI examples for 9.0+
- 1.00.04
- English
USB drivers installer
USB drivers
Use this file to install USB drivers for these products: MAESTRO, INTEGRA, U-LINK, P-LINK, M-LINK, S-LINK, BLU, PRONTO, HP, MACH6, BEAMAGE
- 2.00.00
- English
