PH100-SiUV-D0
P/N 200879Photodiode detector for laser power measurement up to 4 mW.
-
- 5 mm Ø
- 10 mm Ø
-
- Silicon
- UV-Silicon
- Germanium
-
- None
- OD1
- OD2
- OD0.3
-
- Standard
- INTEGRA (USB)
- INTEGRA (RS-232)
- INTEGRA (USB with external trigger)
- BLU (wireless)
Available with
Key features
Large apertures
10 mm Ø for the silicon sensors
3 versions
- Silicon 350 - 1080 nm, up to 750 mW
- Silicon-UV 210 - 1080 nm, up to 38 mW
- Germanium 800 - 1650 nm, up to 500 mW
Choice of attenuators
- OD0.3: 50% transmission (for PH100-SIUV only)
- OD1: 10% transmission
- OD2: 1% transmission
High accuracy
The new PH100-SI-HA presents the lowest calibration uncertainty to date.
Precise calibration
Wavelength selection in 1 nm steps
Smart interface
Containing all the calibration data
Compatible stand
Compatible displays & PC interfaces
-
MIRO ALTITUDE
Touchscreen display device for power & energy measurement. Single-channel.
-
MAESTRO
Touchscreen display device for power & energy measurement. Single-channel, multiple outputs (USB, Ethernet, analog).
-
U-LINK (USB)
PC interface for power & energy measurement. Single-channel, USB output.
-
U-LINK (RS-232)
PC interface for power & energy measurement. Single-channel, RS-232 output.
-
INTEGRA
Embedded PC interface for power & energy measurement. Can only be purchased as a detector output option.
-
TUNER
Display device with tuning needle for power measurement. Single-channel.
-
UNO
Economical display device for power measurement. Single-channel.
-
P-LINK (USB)
PC interface for power measurement. Single-channel, USB output.
-
P-LINK (RS-232)
PC interface for power measurement. Single-channel, RS-232 output.
-
M-LINK
PC interface for power & energy measurement. Single-channel, USB output.
-
P-LINK-4 (USB)
PC interface for power measurement. Four channels.
Measurement capabilities
-

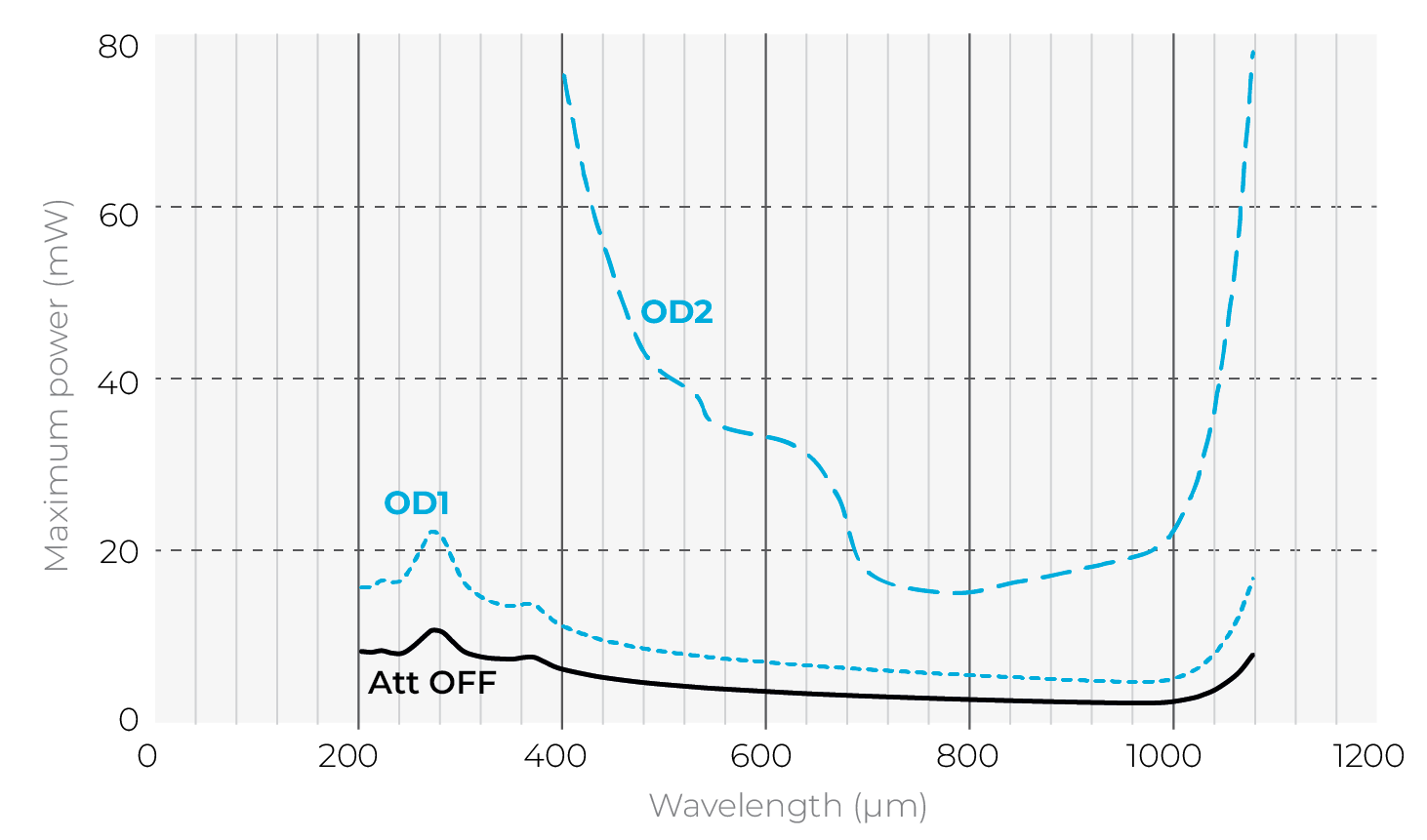

Maximum average power1
4 mW -
Noise equivalent power2
10 pW -
Spectral range
210 - 1080 nm -
Typical rise time
0.2 s -
Power calibration uncertainty
±18 % (210 - 229 nm)
±8.0 % (230 - 254 nm)
±6.5 % (255 - 399 nm)
±2.5 % (400 - 899 nm)
±4.0 % (900 - 1009 nm)
±7.5 % (1010 - 1080 nm) -
Peak sensitivity
0.45 A/W @ 850 nm -
- 1. At 532 nm. See curves for maximum power at other wavelengths.
- 2. At 850 nm. Nominal value. Actual value depends on environmental electromagnetic interference and wavelength.
Damage thresholds
-
Maximum average power density
100 W/cm²
Physical characteristics
-
Aperture diameter
10 mm -
Absorber
SiUV -
Dimensions
38.1Ø x 27.4D mm -
Weight
0.13 kg -
Distance to sensor face
13.7 mm
-
PH100-Si-HA-D0, PH100-SiUV-D0, PE10B-Si-D0
3D model (STEP)
- 9664A
- English
Power detectors
Absorption curves
Absorption curves for power detectors
- 2022_V1.1
- English
INTEGRA module
3D model (STEP)
- 9875
- English
INTEGRA module for PH, PE and IS series
2D CAD file (PDF)
- 9588A
- English
-
STAND-D-233
Stand with 2 x 3in base, 3in cylinder, delrin post, ¼-20 & 8-32.
FOA-FULL-FC
Fiber optic adaptor FC/PC with full cover. For: XLP12, -B heads (except THZ), PH, IS12 and STEP.
FOA-FULL-SMA
Fiber optic adaptor SMA with full cover. For: XLP12, -B heads (except THZ), PH, IS12 and STEP.
FOA-FULL-ST
Fiber optic adaptor ST with full cover. For: XLP12, -B heads (except THZ), PH, IS12 and STEP.
OD0.3
OD0.3 attenuator for PH series.
OD1
OD1 attenuator for PH series.
OD2
OD2 attenuator for PH series.
XLP12-TUBE
Isolation tube for XLP12 series. Can be used with any detector having a SM1-threaded aperture. Includes XLP12 series, UP...
EXT-#
Extension cable. Various cable lengths are available, up to 40 m.
GCP
Instrument service plan for Gentec-EO products. Includes 1 recalibration and extends the Gentec-EO warranty for 1 year.
-
PC-Gentec-EO
User Manual
Universal PC application software.
- 9
- English
PH and PE
User Manual
Photodetectors
- 3.3
- English
Calibration Uncertainty of Photodetectors
Technical note
- English
How calibration works
Technical note
- 2022
- English
Recalibration options when using an extension cable
Technical note
- English
Same laser, different measurements. What's the problem?
Technical note
- English
Understanding the spectral characteristics of your detectors
Technical note
- English
Power detectors - overview
Comparison table
- 2022
- English
